Subaru Crosstrek Service Manual: Inspection

POWER ASSISTED SYSTEM (POWER STEERING) > Steering Column

INSPECTION

1. UNIT INSPECTION

Check the following items, and if there is anything out of standard value, it is considered to be damaged. If so, replace it with a new part.

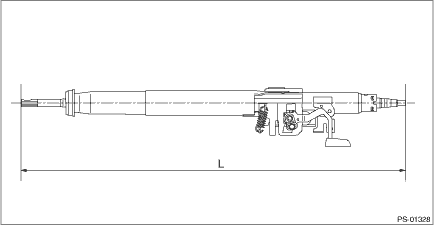

Measure the whole length of the column assembly - steering.

Standard: Overall length L

Tilt and telescopic column (measure while minimized)

819.7+1.5 −1.5 mm (32.27+0.059 −0.059 in)

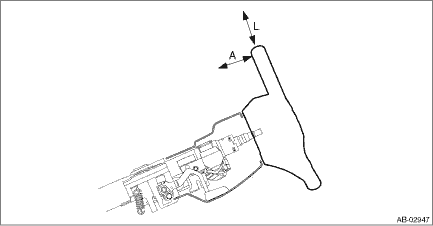

Check the steering wheel deflection in axial and vertical directions.

Specification:

Axial deflection A (deflection of steering wheel)

Less than 6 mm (0.24 in)

Vertical deflection L (runout of steering wheel)

Less than 17 mm (0.68 in)

2. INSPECTION OF AIRBAG SYSTEM

Refer to “Airbag System” for airbag inspection procedure. Driver’s Airbag Module > INSTALLATION">
