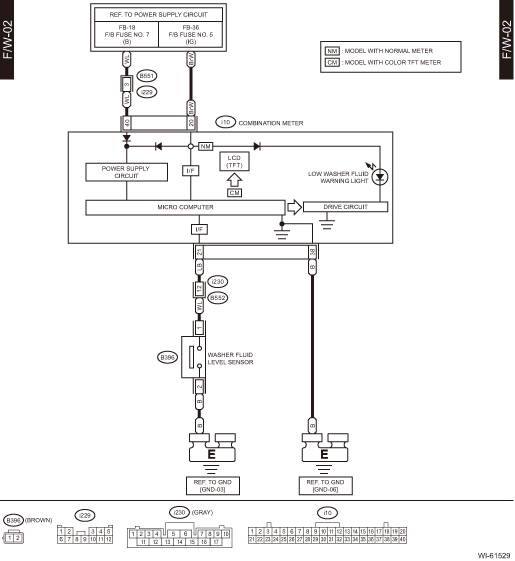

Subaru Crosstrek Service Manual: Front wiper and washer system Wiring diagram

Subaru Crosstrek Service Manual / Wiring system / Front wiper and washer system Wiring diagram

WIRING SYSTEM > Front Wiper and Washer System

WIRING DIAGRAM

Front fog light system Wiring diagram
WIRING SYSTEM > Front Fog Light SystemWIRING DIAGRAM1. WITHOUT SRF2. WITH SRF ...

Front wiring harness Location
WIRING SYSTEM > Front Wiring HarnessLOCATIONConnectorConnecting toNo.PoleColorAreaNo.DescriptionF51BlackC-1 HornF62C-1 Front fog light RH (without SRF)2BlackC-1 Front fog light RH (with SRF)F162C-1 ...

Other materials:

Dtc p000c "a" camshaft position slow response bank 2
ENGINE (DIAGNOSTICS)(H4DO) > Diagnostic Procedure with Diagnostic Trouble Code (DTC)DTC P000C "A" CAMSHAFT POSITION SLOW RESPONSE BANK 2NOTE:For the diagnostic procedure, refer to DTC P0021. Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P0021 "A" CAMSHAFT P ...

Assembly
FRONT SUSPENSION > Front StrutASSEMBLY1. Before assembly, check each part. Front Strut > INSPECTION">2. Using a coil spring compressor, compress the coil spring - front.CAUTION:When installing the coil spring compressor to the coil spring, follow the operation manual accompanied with ...

Inspection
SECURITY AND LOCKS > Relay and FuseINSPECTION1. CHECK FUSE1. Remove the fuse and inspect visually.2. If the fuse is blown out, replace the fuse.NOTE:If the fuse is blown again, check the system wiring harness.2. CHECK RELAY1. Check the resistance between relay terminals.Terminal No.Inspection con ...
