Subaru Crosstrek Service Manual: Electrical specification

INSTRUMENTATION/DRIVER INFO > Multi-function Display (MFD) System

ELECTRICAL SPECIFICATION

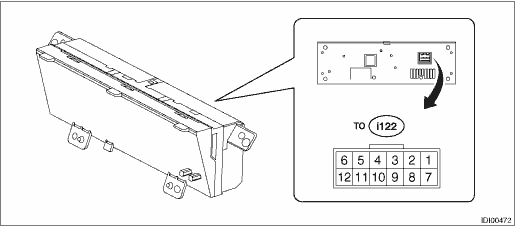

1. MULTI FUNCTION DISPLAY

Standard type

Terminal No.

Item

Measuring condition

Standard

1 (+B) ←> Chassis ground

Voltage

Always

10 — 14 V

2 (GND) ←> Chassis ground

Resistance

Always

Less than 1 ?

3 (IG) ←> Chassis ground

Voltage

IG OFF > ON

0 V > 10 — 14 V

9 (U-ART com.)

Cannot be measured

10 ←> Chassis ground

Voltage

Passenger’s airbag ON indicator light OFF > ON

0 V > 1.5 V

11 ←> Chassis ground

Voltage

Passenger’s airbag OFF indicator light OFF > ON

0 V > 1.5 V

High grade type

Refer to “Control Module I/O Signal” of “INSTRUMENTATION/DRIVER INFO (DIAGNOSTICS)” section. Control Module I/O Signal > ELECTRICAL SPECIFICATION">

Multi-function display (mfd) system
...

Wiring diagram
INSTRUMENTATION/DRIVER INFO > Multi-function Display (MFD) SystemWIRING DIAGRAMRefer to “Multi-function Display (MFD) System” in WI section. Multi-function Display (MFD) System > WI ...
