FUEL INJECTION (FUEL SYSTEMS)(H4DO) > Intake Manifold

DISASSEMBLY

1. Remove the throttle body. Throttle Body > REMOVAL">

2. Remove the purge control solenoid valve. Purge Control Solenoid Valve > REMOVAL">

3. Remove the manifold absolute pressure sensor. Manifold Absolute Pressure Sensor > REMOVAL">

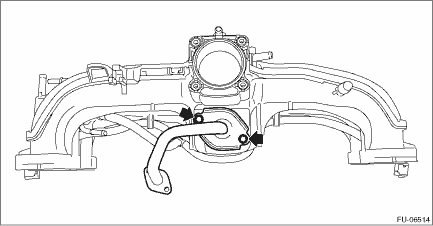

4. Remove the EGR pipe from intake manifold.

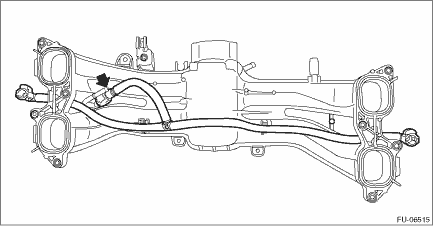

5. Remove the fuel delivery pipe from intake manifold.

NOTE:

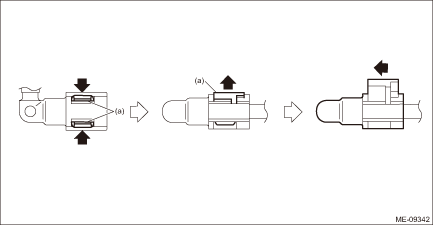

Disconnect the quick connector as shown in the figure.

(a)

Slider

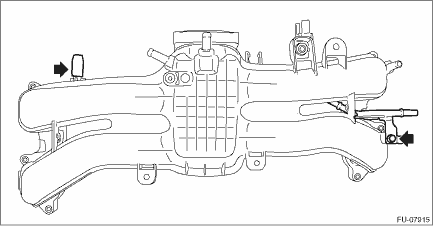

6. Remove the fuel pipe and cap from the intake manifold.

Removal

FUEL INJECTION (FUEL SYSTEMS)(H4DO) > Intake ManifoldREMOVAL1. Release the fuel pressure. Fuel > PROCEDURE">2. Disconnect the ground cable from battery.3. Open the fuel filler lid and r ...

FUEL INJECTION (FUEL SYSTEMS)(H4DO) > Intake ManifoldINSPECTION1. Check that the intake manifold and fuel pipe have no deformation, cracks and other damages.2. Check that the hose has no cracks, da ...
