Subaru Crosstrek Service Manual: Component
VEHICLE DYNAMICS CONTROL (VDC) > General Description
COMPONENT

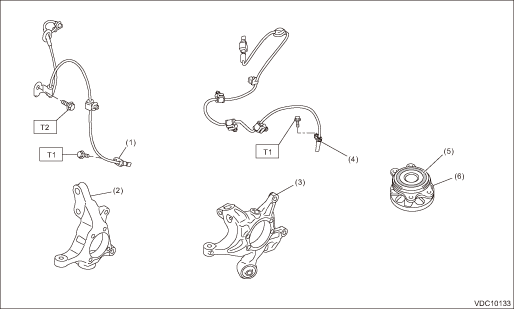

1. ABS WHEEL SPEED SENSOR
(1) | Front ABS wheel speed sensor | (4) | Rear ABS wheel speed sensor | Tightening torque: N·m (kgf-m, ft-lb) | |
(2) | Housing ASSY - front axle | (5) | Magnetic encoder | T1: | 7.5 (0.8, 5.5) |
(3) | Housing ASSY - rear axle | (6) | Hub unit COMPL | T2: | 33 (3.4, 24.3) |

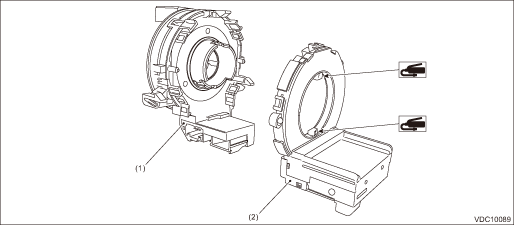

2. STEERING ANGLE SENSOR
(1) | Steering roll connector | (2) | Steering angle sensor |
3. VDC CONTROL MODULE & HYDRAULIC CONTROL UNIT (VDCCM&H/U)

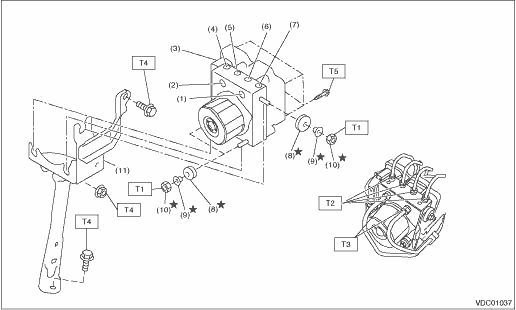

• Models without EyeSight
(1) | Primary inlet | (7) | Rear LH outlet | Tightening torque: N·m (kgf-m, ft-lb) | |
(2) | Secondary inlet | (8) | Damper - hydraulic unit | T1: | 7.5 (0.8, 5.5) |
(3) | VDC control module and hydraulic control unit (VDCCM&H/U) | (9) | Spacer | T2: | 15 (1.5, 11.1) |
(4) | Rear RH outlet | (10) | Nut | T3: | 19 (1.9, 14.0) |
(5) | Front LH outlet | (11) | Bracket - hydraulic unit | T4: | 33 (3.4, 24.3) |
(6) | Front RH outlet | T5: | VDC Control Module and Hydraulic Control Unit (VDCCM&H/U) > REPLACEMENT"> | ||

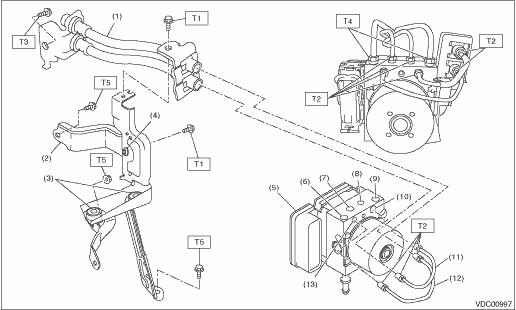

• Models with EyeSight
(1) | Hose ASSY | (8) | Front RH outlet | Tightening torque: N·m (kgf-m, ft-lb) | |
(2) | Bracket - hydraulic unit | (9) | Primary inlet | T1: | 7.5 (0.8, 5.5) |
(3) | Damper - hydraulic unit | (10) | Rear LH outlet | T2: | 15 (1.5, 11.1) |
(4) | Spacer | (11) | Pipe A | T3: | 18 (1.8, 13.3) |
(5) | VDC control module and hydraulic control unit (VDCCM&H/U) | (12) | Pipe B | T4: | 19 (1.9, 14.0) |
(6) | Secondary inlet | (13) | Rear RH outlet | T5: | 33 (3.4, 24.3) |
(7) | Front LH outlet | ||||
