Subaru Crosstrek Service Manual: Check list for interview Check
EyeSight (DIAGNOSTICS) > Check List for Interview
CHECK
Inspect the following items regarding the vehicle’s state.
Writer/Inspector | Writer’s name | |||||
Inspector’s Name | ||||||
Vehicle information | Car accessory equipment condition | Car accessory is installed to the windshield glass. | No/Yes (Position: ) | |||
Other | No/Yes (Accessory’s name: ) | |||||
Is there any modification for the following items? | Suspension? | Not changed / Changed (Specifically: ) | ||||
Headlight? | Not changed / Changed (Specifically: ) | |||||
Tire size? | Not changed / Changed (Specifically: ) | |||||
Front wiper? | Not changed / Changed (Specifically: ) | |||||
How is the condition around camera? | Is there any scratch or damage on the windshield glass? | No/Yes (Specifically: ) | ||||
Are antennas, etc. attached on the prohibited area? | No/Yes (Specifically: ) | |||||
Is wide mirror or accessory attached? | No/Yes (Specifically: ) | |||||
How is the surface condition of the windshield glass? | Presence of oil film, fogging, dirt and/or glass coating | No/Yes (Specifically: ) | ||||
How is the condition of the dashboard? | Is there anything that can be easily reflected against the windshield glass on the dashboard? | No/Yes (Specifically: ) | ||||
How is the deterioration of the wiper? | Does any streak or uneven wiping area remain in front of the camera? | No/Yes (Specifically: ) | ||||
How is the condition of the tire? | Is there any wear? Is there any excessive wear difference? | No/Yes (Specifically: ) | ||||
Is the air pressure proper? | Proper/Improper (Specifically: ) | |||||
How is the condition of the camera lens filter? | Is there finger print adhesion or cracks on the lens filter? | No/Yes (Specifically: ) | ||||
Description of malfunction | What kind of malfunction has been detected? | Failure / temporary stop / faulty operation of adaptive cruise control / faulty operation of pre-collision brake / other faulty operations | ||||
What kind of DTC and/or cancel code is displayed? | ||||||
How is the meter display? | EyeSight warning light | Off/On/Blink | ||||
Pre-collision brake OFF indicator light | Off/On | |||||
Lane departure warning OFF indicator light | Off/On | |||||
Multi information display | ||||||
• EyeSight Disabled No Camera View
• EyeSight Disabled Temp Range
• EyeSight Disabled Check Manual
Occurrence conditions
Occurrence date
Occurrence location
Vehicle speed at occurrence
Approx. km/h (MPH)
Occurrence timing
During driving / during stopping / continues after engine has started
Road type
Express way / limited highway / main highway / general road
Weather
Fine/cloudy/rainy/snowy/other
Road condition
Dry/slippery (Rainy • compacted snow • icy road)
Ambient temperature
Approx. ° C(°F)
Road condition
Asphalt / gravel / earth and sand / other
Position of solar radiation
Described in the detailed chart when the weather is fine.
Road shape
Uphill / downhill / bank / roll / uneven surface
Time elapsed after engine start
Immediately after engine start / within 5 minutes after engine start / more than 5 minutes after engine start
Wiper operation status
OFF/INT/LO/HI/AUTO
Light on status
Off / LO On / HI On
Vehicle weight
Number of passengers: ( ),
Did the vehicle carry heavy load? (No/Yes (Approx. kg))
Detailed chart
(Refer to the example of description.)

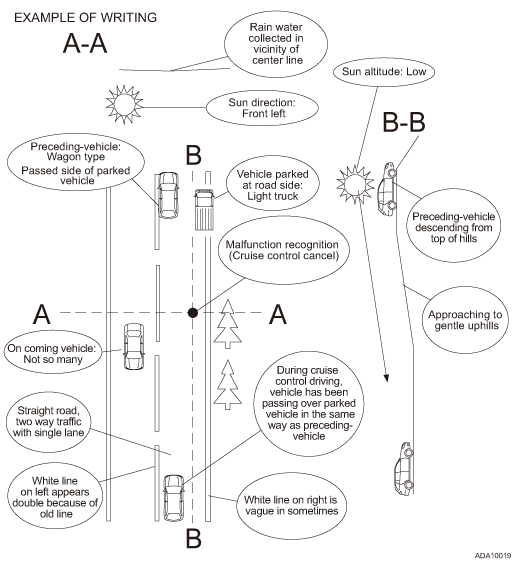

In case of malfunction caused by temporary stop or faulty operation, describe the details by referring to the example below so that the following conditions can be recognized. (Images taken with a digital camera, etc. are acceptable.)
• Road shape (straight, curve, tunnel, number of lane, etc.)
• Road grade and it’s change
• Presence of white line, guardrails and/or side wall (degree of clarity)
• Position of the sun
• Presence and shape of preceding vehicle, oncoming vehicle, vehicle running on the next lane or pedestrian
• Presence and shape of surrounding building or structure
• Traveled course of own vehicle and preceding vehicle
Basic diagnostic procedure Procedure
EyeSight (DIAGNOSTICS) > Basic Diagnostic ProcedurePROCEDURECAUTION:• Start the diagnosis after the engine has started. (Cruise control main switch does not turn on even if it is pressed befo ...
Clear memory mode Operation
EyeSight (DIAGNOSTICS) > Clear Memory ModeOPERATION1. On «Start» display, select «Diagnosis».2. On «Vehicle selection» display, input the target vehicle information and select «Confirmed».3 ...
