EXHAUST(H4DO) > Front Exhaust Pipe

ASSEMBLY

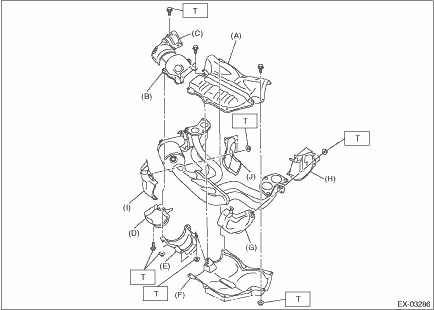

1. Install each cover to the front exhaust pipe.

Tightening torque:

13 N·m (1.3 kgf-m, 9.6 ft-lb)

(A)

Front exhaust pipe upper cover

(E)

Front catalytic converter lower cover LH

(H)

Front exhaust pipe side cover LH (rear)

(B)

Front catalytic converter upper cover LH

(F)

Front exhaust pipe lower cover

(I)

Front exhaust pipe side cover RH (front)

(C)

Front catalytic converter upper cover RH

(G)

Front exhaust pipe side cover LH (front)

(J)

Front exhaust pipe side cover RH (rear)

(D)

Front catalytic converter lower cover RH

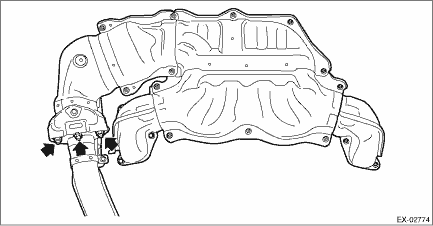

2. Install the center exhaust pipe to front exhaust pipe.

NOTE:

Use a new gasket.

Tightening torque:

42.5 N·m (4.3 kgf-m, 31.3 ft-lb)

3. Install the front oxygen (A/F) sensor and rear oxygen sensor to the front exhaust pipe. Front Oxygen (A/F) Sensor > INSTALLATION"> Rear Oxygen Sensor > INSTALLATION">

Front exhaust pipe
...

Removal
EXHAUST(H4DO) > Front Exhaust PipeREMOVALCAUTION:Vehicle components are extremely hot after driving. Be wary of receiving burns from heated parts.1. Disconnect the ground cable from battery. NOTE& ...
