Subaru Crosstrek Service Manual: Assembly

Subaru Crosstrek Service Manual / Emission control (aux. Emission control devices)(h4do) / Drain separator / Assembly

EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES)(H4DO) > Drain Separator

ASSEMBLY

Assemble in the reverse order of disassembly.

NOTE:

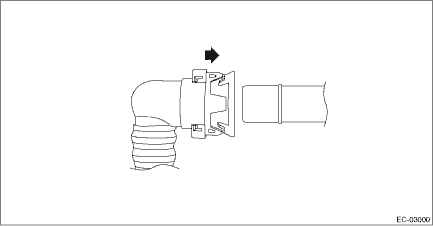

Connect the quick connector as shown in the figure.

Removal

EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES)(H4DO) > Drain SeparatorREMOVALThe drain separator is installed to the leak check valve assembly. Refer to “Leak Check Valve Assembly” fo ...
