Subaru Ascent 2018-2026 Owner's Manual: Airflow mode selection

In the Subaru Ascent, airflow direction can be customized manually to suit different driving conditions and passenger comfort preferences. To select the desired airflow mode, follow the steps below.

1. Tap the climate control mode indicator on the display.

2. Choose the preferred airflow distribution mode from the available options.

The Subaru Ascent offers multiple airflow configurations to optimize comfort and visibility.

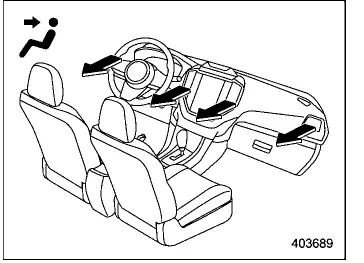

Ventilation: Air is directed primarily through the instrument panel outlets, providing direct airflow to the upper body.

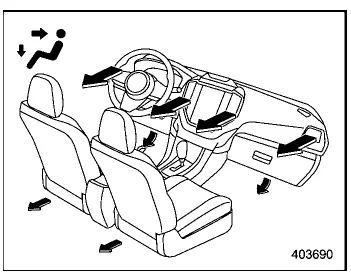

Ventilation 2: Air is distributed between the instrument panel outlets and foot outlets, offering a balanced airflow pattern.

Bi-level: A combination mode where air flows simultaneously to the upper vents and lower foot area, improving overall cabin comfort.

Heat: Air is directed mainly to the foot outlets, with a portion routed toward the windshield and side windows to help prevent fogging.

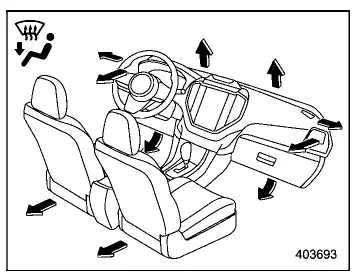

Heat-def: Air is directed to the windshield defroster outlets, foot outlets, and side vents, ensuring both cabin warmth and clear visibility.
