Subaru Crosstrek Owners Manual: Headlights (models without HID headlights)

Subaru Crosstrek Owners Manual / Maintenance and service / Replacing bulbs / Headlights (models without HID headlights)

CAUTION

Halogen headlight bulbs become very hot while in use. If you touch the bulb surface with bare hands or greasy gloves, fingerprints or grease on the bulb surface will develop into hot spots, causing the bulb to break. If there are finger prints or grease on the bulb surface, wipe them away with a soft cloth moistened with alcohol.

NOTE

Perform the following steps to replace the bulbs.

Right-hand side
Right-hand side

1. Use a screwdriver to undo the clips on the air intake duct, then remove the air intake duct (right-hand side).

Left-hand side
Left-hand side

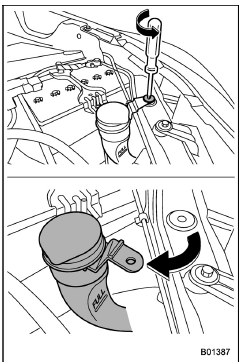

2. Use a screwdriver to remove the secured clip of the washer tank. To make it easy to access the bulb, turn the neck of the washer fluid filler pipe as illustrated (left-hand side).

Headlights (models without HID headlights)

1) Low beam bulb

2) High beam bulb

3. Disconnect the electrical connector from the bulb and remove the bulb from the headlight assembly by turning it counterclockwise.

4. Replace the bulb with new one. At this time, use care not to touch the bulb surface.

5. To install the bulb to the headlight assembly, turn it clockwise until it clicks.

6. Reconnect the electrical connector.

7. Install the air intake duct with clips (right-hand side).

8. Set the washer fluid filler pipe to the original place and secure it by clip (lefthand side).

Front turn signal light

It may be difficult to replace the bulbs.

Have the bulbs replaced by your SUBARU dealer if necessary.

Parking light

It may be difficult to replace the bulbs.

Have the bulbs replaced by your SUBARU dealer if necessary.

Front fog light

It may be difficult to replace the bulbs.

Have the bulbs replaced by your SUBARU dealer if necessary.

Headlights (models with HID headlights)
WARNING High-intensity-discharge (HID) bulbs are used for the low beams of the headlights. These HID bulbs use an extremely high voltage. To avoid the risk of an electric shock that could result ...

Rear combination lights
1. Using a Phillips screwdriver, remove the upper and lower screws that secure the rear combination light assembly. 2. Slide the rear combination light as- 11-38 sembly rearward and remov ...
