Subaru Ascent 2018-2026 Owner's Manual: X-MODE indicator

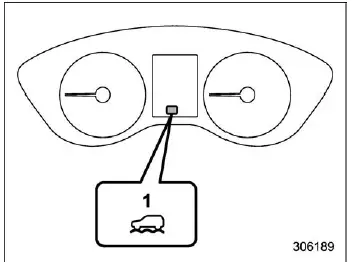

X-MODE indicator (models with 1 mode)

1. X-MODE indicator

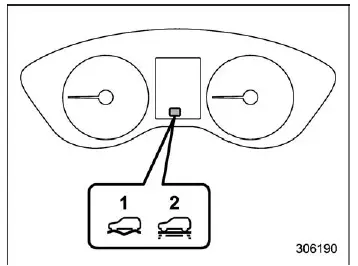

X-MODE indicator (models with 2 modes)

1. DEEP SNOW/MUD mode indicator
2. SNOW/DIRT mode indicator

In the Subaru Ascent, the X-MODE indicator is displayed whenever the X-MODE system is activated. This advanced feature is designed to optimize traction and control on challenging surfaces such as snow, mud, or uneven terrain. When X-MODE is turned off, the indicator disappears, signaling that the vehicle has returned to standard driving mode.

On Subaru Ascent models equipped with multiple X-MODE settings, specific indicators show whether SNOW/DIRT or DEEP SNOW/MUD mode is currently selected. These modes adjust engine output, transmission behavior, and braking control to provide maximum stability and confidence in difficult driving conditions.

Hill descent control indicator

The hill descent control indicator in the Subaru Ascent appears when the system is in standby mode. Once activated, it will begin flashing, indicating that the function is actively controlling vehicle speed during downhill driving. This system helps maintain a constant low speed without requiring constant brake input, improving safety on steep slopes. The indicator will disappear when the function is no longer available or has been deactivated.

BSD/RCTA warning indicator

This warning indicator in the Subaru Ascent is displayed when a malfunction occurs in the Blind Spot Detection (BSD) or Rear Cross Traffic Alert (RCTA) systems. These systems are critical for monitoring surrounding traffic and assisting the driver during lane changes and reversing.

If this warning appears on the combination meter display, the Subaru Ascent should be inspected by a SUBARU dealer as soon as possible to restore full system functionality and ensure safe operation.

BSD/RCTA OFF indicator

The BSD/RCTA OFF indicator appears on the Subaru Ascent display when the Rear Vehicle Detection system is manually deactivated or temporarily suspended. In this state, blind spot monitoring and rear cross traffic alerts will not be available, so extra caution is required when changing lanes or reversing.

RAB warning indicator

This indicator illuminates in the Subaru Ascent if a malfunction is detected in the Reverse Automatic Braking (RAB) system. Since this system assists in preventing collisions while reversing, any warning should be addressed promptly by having the vehicle inspected.

RAB OFF indicator

The RAB OFF indicator in the Subaru Ascent is displayed when the Reverse Automatic Braking system has been turned off or is temporarily unavailable. In this situation, the vehicle will not automatically apply the brakes when reversing toward an obstacle, so increased driver attention is required.

Icy road surface warning indicator

When the outside temperature drops to 37°F (3°C) or lower, the Subaru Ascent activates the icy road surface warning indicator. This alert is designed to warn the driver that road conditions may be slippery due to possible ice formation.

NOTE

• The outside temperature display in the Subaru Ascent reflects the temperature around the sensor, but readings may not always be precise or may update slowly under certain conditions.
  • When the vehicle is stationary or moving at very low speeds
  • When there are rapid environmental temperature changes, such as entering or exiting tunnels or underground parking areas
  • When the engine is started after the vehicle has been parked for an extended period
• The icy road surface warning in the Subaru Ascent should be used only as a general guideline. Always assess actual road conditions visually and adjust driving behavior accordingly.
• Once activated, the warning will remain visible until the outside temperature rises to approximately 41ºF (5ºC) or higher.

Effective use of X-MODE and awareness of related indicators in the Subaru Ascent significantly enhances traction, stability, and driver confidence when navigating snow-covered roads, muddy terrain, or steep descents, ensuring safer and more controlled driving in demanding environments.

Driver Monitoring System operation indicator light (green)

In the Subaru Ascent, this green indicator light confirms that the Driver Monitoring System is active and functioning. The system continuously observes the driver’s attention level and driving behavior to enhance safety and reduce the risk of distraction or fatigue-related incidents. Refer to "Driver Monitoring System operation indicator light (green)" for detailed functionality.

Driver Monitoring System warning light (yellow)

This yellow warning light in the Subaru Ascent illuminates when a malfunction is detected within the Driver Monitoring System. Since this system plays a critical role in driver awareness and safety assistance, it is important to have your Subaru Ascent inspected by an authorized SUBARU dealer as soon as possible. Refer to "Driver Monitoring System warning light (yellow)" for additional details.

Driver Monitoring System OFF indicator light

This indicator appears in the Subaru Ascent when the Driver Monitoring System has been manually turned off. When this light is illuminated, the system is not actively monitoring the driver, and its safety features will be unavailable. Refer to "Driver Monitoring System OFF indicator light" for more information.

Driver Monitoring System temporary stop indicator light

This indicator light illuminates in the Subaru Ascent when the Driver Monitoring System is temporarily suspended. During this time, the system is not actively tracking driver status.

Refer to "Driver Monitoring System temporary stop indicator light" for detailed explanations of system conditions and behavior.

NOTE

The Driver Monitoring System in the Subaru Ascent may temporarily stop operating under certain conditions.

• For example, if the temperature of the Driver Monitoring System unit becomes too high, the system will pause operation until normal conditions are restored.

One-touch Interior Illumination indicator

This indicator light in the Subaru Ascent illuminates when the One-touch Interior Illumination function is activated, providing convenient control of the cabin lighting system. Refer to "One-touch Interior Illumination function" for further details on usage and customization.

Sonar Audible Alarm OFF indicator

This indicator illuminates in the Subaru Ascent when the Sonar Audible Alarm has been turned off. In this state, audible alerts from parking sensors will not sound, so the driver should exercise increased caution when maneuvering the vehicle. For instructions on adjusting this setting, refer to "Car settings".

Understanding and correctly interpreting these Driver Monitoring System and convenience feature indicators in the Subaru Ascent helps ensure that advanced safety technologies operate as intended, supporting driver awareness, improving comfort, and contributing to a safer driving experience in everyday conditions.
