Subaru Ascent 2018-2026 Owner's Manual: Safety tips

Safety tips for seat

This section for the Subaru Ascent provides essential safety recommendations designed to ensure maximum protection for all occupants. Following these guidelines will help maintain optimal seating position, proper restraint usage, and overall driving safety in your Subaru Ascent, especially during daily use and long-distance travel.

WARNING

Subaru Ascent correct seating position and airbag safety distance illustration

WARNING

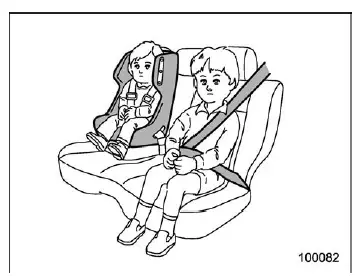

Always ensure that children are seated in the rear seats of the Subaru Ascent and properly restrained at all times. The SRS airbag deploys with considerable force and may cause severe injury or even fatal consequences for children, especially if they are incorrectly positioned or not properly secured. Due to their smaller size and lower body strength, children are significantly more vulnerable to airbag deployment forces.

For this reason, it is strongly recommended that ALL children traveling in the Subaru Ascent — including those in child restraint systems and those who have outgrown such systems — remain seated in the REAR seats and are properly secured using an appropriate restraint system or seatbelt based on their age, height, and weight. All child restraint systems, including forward-facing seats, must always be installed in the rear seating area.

NEVER INSTALL A CHILD RESTRAINT SYSTEM IN THE FRONT PASSENGER'S SEAT. DOING SO RISKS SERIOUS INJURY OR DEATH TO THE CHILD BY POSITIONING THE CHILD TOO CLOSE TO THE SRS AIRBAG.

Accident statistics consistently show that children are significantly safer when properly restrained in rear seating positions compared to front seats in vehicles like the Subaru Ascent.

Subaru Ascent child safety seating in rear seats with proper restraint system

Additionally, for optimal safety in the Subaru Ascent, always perform regular checks of seat adjustments, seatbelt condition, and child restraint installations. Maintaining correct seating posture and using all safety systems properly significantly enhances protection for both driver and passengers.

WARNING

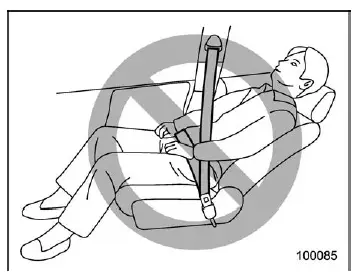

To maximize passenger protection in the Subaru Ascent, always ensure that the seatback is positioned in a fully upright position while the vehicle is in motion. This seating posture is critical to prevent the passenger from sliding beneath the seatbelt during a sudden stop or collision. Additionally, never place cushions, pillows, or any other objects between the passenger and the seatback, as this can compromise the effectiveness of the restraint system.

Failure to follow these guidelines in the Subaru Ascent significantly increases the risk of “submarining” under the lap belt, or the belt riding up onto the abdomen, both of which can lead to severe injuries or even fatal consequences in the event of an accident.

Subaru Ascent correct seatback position to prevent sliding under seatbelt

WARNING

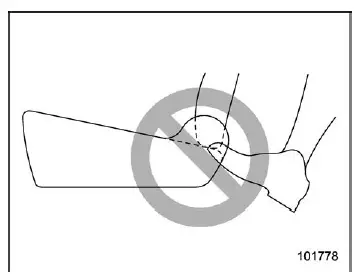

Rear passengers in the Subaru Ascent must never place their feet between the front seatback and the seat cushion. This improper positioning can interfere with several critical safety and comfort systems and may lead to serious injury.

Subaru Ascent incorrect rear passenger foot placement interfering with seat systems

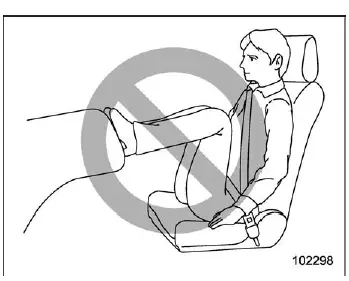

Occupants should also avoid pressing their feet or legs against the instrument panel in the Subaru Ascent. Doing so may disrupt the functionality of the occupant detection system, preventing the SRS airbag system and front passenger airbag from operating correctly.

Improper positioning in the Subaru Ascent may result in reduced airbag effectiveness and significantly increase the likelihood of serious injury or death during a collision.

Subaru Ascent improper leg position affecting airbag system performance

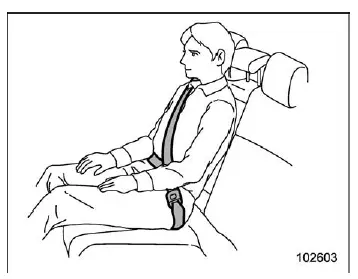

For optimal protection in the Subaru Ascent, seatbelts must always be used while sitting upright with your back firmly against the seat. Avoid placing cushions or any additional materials between occupants and the seat surfaces, as this can alter the correct positioning of the seatbelt and reduce its effectiveness during impact situations.

Such improper seating arrangements increase the likelihood of sliding under the lap belt or causing it to shift toward the abdomen, both of which may result in severe or fatal injuries.

Subaru Ascent proper seatbelt usage with upright seating position

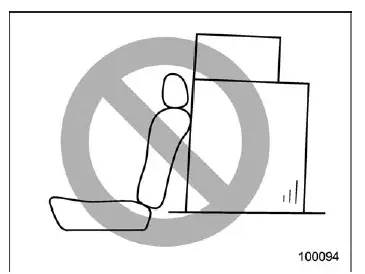

When transporting cargo in the Subaru Ascent, never stack luggage or other items higher than the top of the seatback. In the event of sudden braking or a collision, unsecured cargo may be thrown forward, posing a serious risk of injury to passengers.

Safety tips for head restraint

WARNING

For enhanced safety in the Subaru Ascent, regularly check the positioning of seats, head restraints, and seatbelts before every journey. Proper use of these systems plays a crucial role in protecting all occupants and maintaining the highest level of vehicle safety.

Seats
The Subaru Ascent seating system is engineered to provide exceptional comfort, safety, and adaptability. Advanced seat design, combined with modern restraint systems, ensures maximum protection fo ...

Manual seat
Forward and backward adjustment In the Subaru Ascent, adjusting the seat forward or backward is simple and designed for precision. Lift the adjustment lever upward and smoothly slide the seat t ...
