Subaru Crosstrek Service Manual: Replacement

CONTINUOUSLY VARIABLE TRANSMISSION(TR580) > Extension Case Oil Seal

REPLACEMENT

CAUTION:

Immediately after the vehicle has been running or after idling for a long time, the CVTF will be hot. Be careful not to burn yourself.

1. Lift up the vehicle.

2. Remove the center exhaust pipe. Center Exhaust Pipe > REMOVAL">

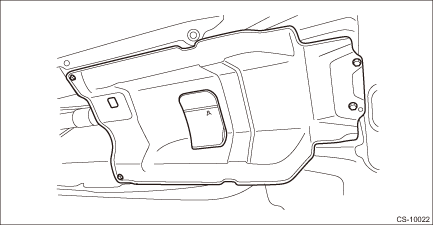

3. Remove the center exhaust cover.

4. Clean the transmission exterior.

5. Remove the propeller shaft. Propeller Shaft > REMOVAL">

6. Using a screwdriver or ST, remove the oil seal trying not to damage the extension case.

ST 398527700PULLER ASSY

7. Using the ST, install the oil seal.

NOTE:

Use a new oil seal.

Apply CVTF to the oil seal lip and press-fitting surface.

ST 498057300OIL SEAL INSTALLER

8. Install the propeller shaft. Propeller Shaft > INSTALLATION">

9. Install the center exhaust cover.

Tightening torque:

18 N·m (1.8 kgf-m, 13.3 ft-lb)

10. Install the center exhaust pipe. Center Exhaust Pipe > INSTALLATION">

11. Adjust the CVTF level and check there is no leakage. CVTF > ADJUSTMENT">
