REAR SUSPENSION > Upper Arm

REMOVAL

1. Remove the rear sub frame assembly. Rear Sub Frame > REMOVAL">

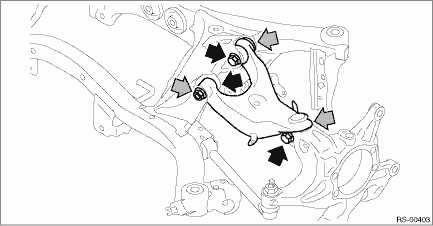

2. Remove the bolts and nuts to remove the upper arm assembly.

Installation
REAR SUSPENSION > Upper ArmINSTALLATIONCAUTION:• Use a new self-locking nut.• Always tighten the bushing when the arm is positioned in the state where the vehicle is at curb weight and ...
