Subaru Crosstrek Service Manual: Removal
INTAKE (INDUCTION)(H4DO) > Air Intake Duct
REMOVAL

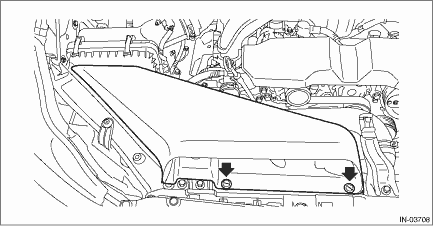

1. Remove the clip which secures the air intake duct, and remove the air intake duct.
Inspection
INTAKE (INDUCTION)(H4DO) > Air Intake DuctINSPECTION1. Check that the air intake duct has no deformation, cracks or other damages.2. Inspect that no foreign objects are mixed in the air intake duct ...
Installation
INTAKE (INDUCTION)(H4DO) > Air Intake DuctINSTALLATIONInstall in the reverse order of removal. ...
