HVAC SYSTEM (HEATER, VENTILATOR AND A/C) > Sunload Sensor (Auto A/C Model)

REMOVAL

CAUTION:

Be careful not to damage the sensors and interior trims when removing.

1. Disconnect the ground cable from battery. NOTE">

2. Remove the sunload sensor.

(1) Release the connectors and claws, and then remove the grille - front defroster.

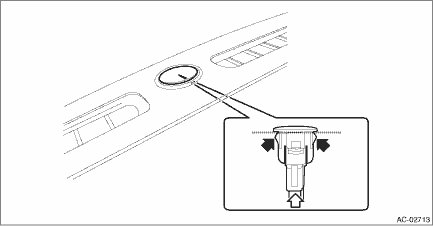

(2) Press the left and right claws to remove the sunload sensor from the grille - front defroster.
