Subaru Crosstrek Service Manual: Removal

ENTERTAINMENT > Front Speaker

REMOVAL

1. TWEETER

1. Disconnect the ground cable from battery. NOTE">

2. Remove the speaker assembly - tweeter.

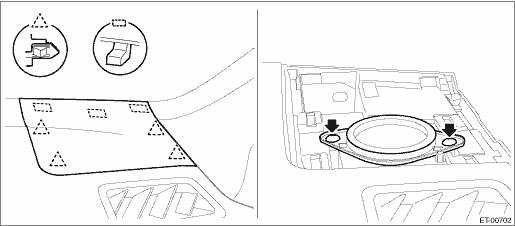

(1) Release the clips and claws, then detach the grille speaker side.

NOTE:

Remove the grille speaker side by using a plastic remover.

(2) Remove the screws.

Preparation tool:

Stubby screwdriver

(3) Disconnect the connector and remove the speaker assembly - tweeter.

2. DOOR SPEAKER

1. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. NOTE">

2. Remove the trim panel - front door. Door Trim > REMOVAL">

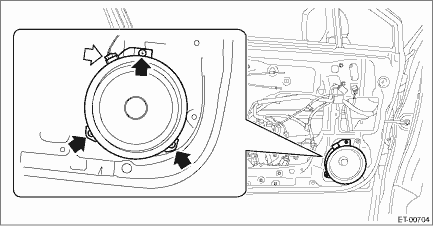

3. Remove the front door speaker assembly.

(1) Disconnect the connector.

(2) Remove the screws to remove the front door speaker assembly.

Installation
ENTERTAINMENT > Front SpeakerINSTALLATIONInstall each part in the reverse order of removal. ...
