EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES)(H4DO) > EGR Pipe

REMOVAL

1. Disconnect the ground cable from battery.

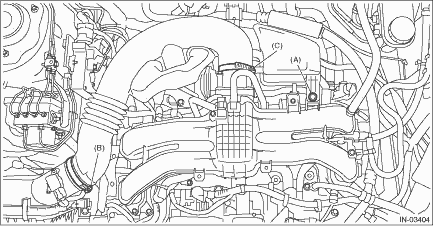

2. Remove the clip (A), and loosen the clamps (B) and (C) securing the air intake boot.

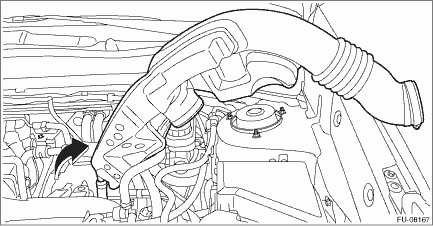

3. Remove the air intake boot from the air cleaner case (rear) and throttle body, and move the air intake boot aside so that it does not interfere with the work.

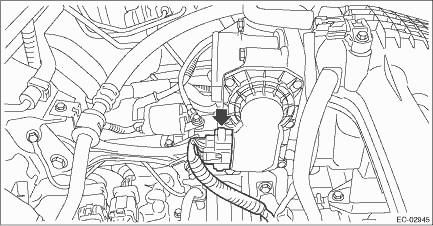

4. Disconnect the connector from the throttle body.

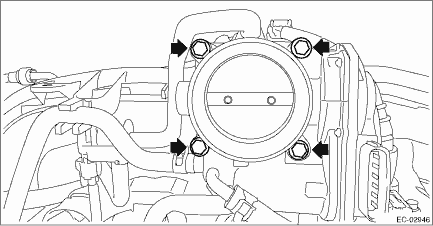

5. Remove the bolts which secure the throttle body to the intake manifold, and tilt the throttle body to the rear side of vehicle.

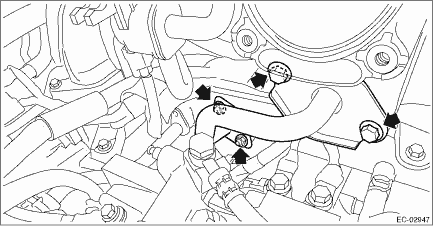

6. Remove the bolts and nuts that hold the EGR pipe to the intake manifold and the water pipe assembly, and remove the EGR pipe.

Inspection
EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES)(H4DO) > EGR PipeINSPECTIONCheck that the EGR pipe has no deformation, cracks or other damages. ...

Installation
EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES)(H4DO) > EGR PipeINSTALLATION1. Temporarily install the EGR pipe to the intake manifold and water pipe assembly, and tighten the EGR pipe in numerica ...
