Subaru Crosstrek Service Manual: Removal

Subaru Crosstrek Service Manual / Continuously variable transmission(tr580) / Drive plate / Removal

CONTINUOUSLY VARIABLE TRANSMISSION(TR580) > Drive Plate

REMOVAL

1. Remove the transmission assembly from the vehicle. Automatic Transmission Assembly > REMOVAL">

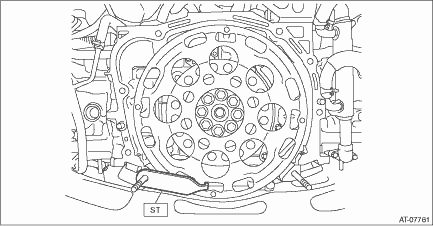

2. Set the ST.

ST 498497300

CRANKSHAFT STOPPER

3. Remove the drive plate and reinforcement drive plate.

Inspection

CONTINUOUSLY VARIABLE TRANSMISSION(TR580) > Drive PlateINSPECTIONCheck the drive cable for damage. ...

CONTINUOUSLY VARIABLE TRANSMISSION(TR580) > Drive PlateINSTALLATION1. Temporarily install the drive plate and reinforcement drive plate.NOTE:Align the knock pin hole of the crankshaft position sens ...
