Subaru Crosstrek Service Manual: Inspection

FUEL INJECTION (FUEL SYSTEMS)(H4DO) > Oil Control Solenoid

INSPECTION

1. Check that the oil control solenoid has no deformation, cracks or other damages.

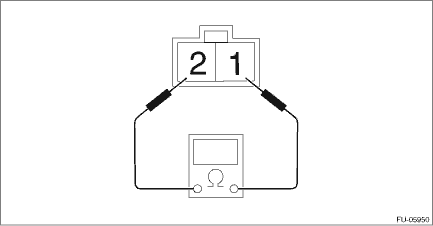

2. Measure the resistance between the oil control solenoid terminals.

Terminal No.

Standard

1 and 2

7.25±0.4 ? (when 20°C (68°F))

Oil control solenoid
...
