Subaru Crosstrek Service Manual: Dtc p0708 transmission range sensor "a" circuit high

CONTINUOUSLY VARIABLE TRANSMISSION (DIAGNOSTICS) > Diagnostic Procedure with Diagnostic Trouble Code (DTC)

DTC P0708 TRANSMISSION RANGE SENSOR "A" CIRCUIT HIGH

DTC detecting condition:

Immediately at fault recognition

Trouble symptom:

Shift characteristics are erroneous.

The range position of the select lever and the position of shift indicator display do not match.

CAUTION:

Use the check board when measuring the TCM terminal voltage and resistance.

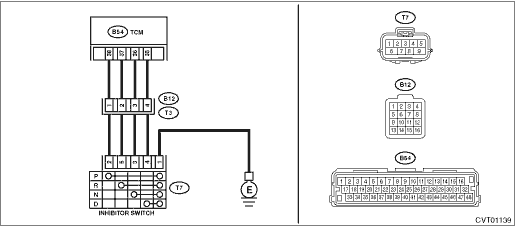

Wiring diagram:

CVT control system CVT Control System">

STEPCHECKYESNO

1.CHECK INPUT SIGNAL FOR TCM.

1) Turn the ignition switch to ON.

2) Move the select lever to each range, and read the data of «P Range», «R Range Signal», «N Range» and «D Range Signal» using the Subaru Select Monitor.

Is the display of the corresponding range “ON”?

Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P0708 TRANSMISSION RANGE SENSOR "A" CIRCUIT HIGH">Go to Step 7.

Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P0708 TRANSMISSION RANGE SENSOR "A" CIRCUIT HIGH">Go to Step 2.

2.CHECK HARNESS.

1) Turn the ignition switch to OFF.

2) Disconnect the TCM connector.

3) Disconnect the transmission connector.

4) Measure the resistance of harness between TCM connector and transmission connector.

Connector & terminal

(B54) No. 38 — (B12) No. 1:

(B54) No. 37 — (B12) No. 2:

(B54) No. 36 — (B12) No. 3:

(B54) No. 35 — (B12) No. 4:

Is each resistance less than 1 ??

Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P0708 TRANSMISSION RANGE SENSOR "A" CIRCUIT HIGH">Go to Step 3.

Repair the open circuit of body harness.

3.CHECK HARNESS.

Measure the resistance of harness between inhibitor switch connector and transmission ground.

Connector & terminal

(T7) No. 1 — Transmission ground:

Is the resistance less than 1 ??

Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P0708 TRANSMISSION RANGE SENSOR "A" CIRCUIT HIGH">Go to Step 4.

Repair the open circuit of harness.

4.CHECK HARNESS.

1) Disconnect the inhibitor switch connector.

2) Measure the resistance between transmission connector and inhibitor switch connector.

Connector & terminal

(T3) No. 1 — (T7) No. 2:

(T3) No. 2 — (T7) No. 5:

(T3) No. 3 — (T7) No. 3:

(T3) No. 4 — (T7) No. 4:

Is each resistance less than 1 ??

Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P0708 TRANSMISSION RANGE SENSOR "A" CIRCUIT HIGH">Go to Step 5.

Repair the open circuit of transmission harness.

5.CHECK INHIBITOR SWITCH.

Move the select lever to each range, and measure the resistance between inhibitor switch terminals.

Terminals

No. 2 — No. 1:

No. 5 — No. 1:

No. 3 — No. 1:

No. 4 — No. 1:

Is the resistance of the corresponding range less than 1 M??

Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P0708 TRANSMISSION RANGE SENSOR "A" CIRCUIT HIGH">Go to Step 6.

Replace the inhibitor switch. Inhibitor Switch">

6.CHECK HARNESS.

1) Turn the ignition switch to ON.

2) Measure the voltage between each connector and chassis ground.

Connector & terminal

Transmission connector (B12 side)

(B12) No. 1 (+) — Chassis ground (−):
(B12) No. 2 (+) — Chassis ground (−):
(B12) No. 3 (+) — Chassis ground (−):
(B12) No. 4 (+) — Chassis ground (−):

Transmission connector (T7 side)

(T7) No. 2 (+) — Chassis ground (−):
(T7) No. 5 (+) — Chassis ground (−):
(T7) No. 3 (+) — Chassis ground (−):
(T7) No. 4 (+) — Chassis ground (−):

Is each voltage less than 1 V?

Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P0708 TRANSMISSION RANGE SENSOR "A" CIRCUIT HIGH">Go to Step 7.

Repair the harness which outputs 1 V or more.

7.CHECK FOR POOR CONTACT.

Is there poor contact between TCM, inhibitor switch, transmission ground?

Repair the poor contact.

Replace the TCM. Transmission Control Module (TCM)">

1. OUTLINE OF DIAGNOSIS

Detect the malfunction of Range Switch.

Judge as NG if there is no input from all Range Switches.

2. EXECUTION CONDITION

Secondary Parameters

Execution condition

12 V battery system voltage

≥ 10 V

Vehicle speed (calculated from secondary pulley shaft speed)

≥ 6 MPH

3. DIAGNOSTIC METHOD

If the duration of time while the following conditions are met is longer than the time indicated, judge as NG.

Judgment Value

Malfunction Criteria

Threshold Value

All transmission range switches OFF

NOTE:

“Transmission range switch OFF” is defined as transmission range switch input voltage ≥ 3.4 V.

True

Time Needed for Diagnosis: 3 seconds

Malfunction Indicator Light Illumination: Illuminates as soon as a malfunction occurs.
