Subaru Crosstrek Service Manual: Dtc b1805 short in passenger s airbag

Diagnosis start condition:

Ignition voltage is 10 V to 16 V.

DTC detecting condition:

• Airbag main harness circuit is shorted.

• Airbag module harness circuit (passenger’s side) is shorted.

• Passenger’s airbag module is faulty.

• Airbag control module is faulty.

Before performing diagnosis, refer to “CAUTION” in “General Description”. General Description > CAUTION">

1.CHECK POOR CONTACT OF CONNECTORS.

Check for poor contact of the connectors between the airbag control module and the passenger’s airbag module.

Is there poor contact?

Replace the airbag harness.

Diagnostic Chart with Trouble Code > DTC B1805 SHORT IN PASSENGER’S AIRBAG">Go to Step 2.

2.CHECK AIRBAG MAIN HARNESS (PASSENGER’S AIRBAG HARNESS).

1) Turn the ignition switch to OFF, disconnect the battery ground cable, and wait for 60 seconds or more.

2) Disconnect the connectors (AB7) and (AB2).

3) Disconnect the connector (AB66) from the driver’s knee airbag module.

4) Disconnect the connectors (AB6, AB17, AB18) from the airbag control module, connect the connector (1AG) in the test harness AG, and release the short mechanism of the connectors (AB6, AB17, AB18).

5) Disconnect the passenger’s airbag module connector (AB9).

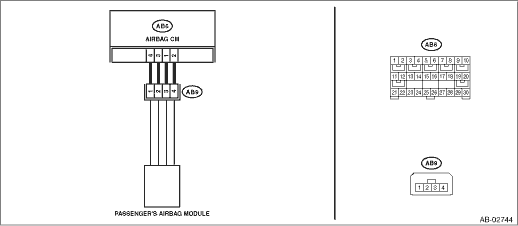

6) Using a probe, measure the resistance between the terminals of connector (AB9). General Description > PREPARATION TOOL">

CAUTION:

When measuring the resistance, make sure that the probe is inserted from the back side (harness side) of the connector. Also, do not insert the probe forcibly.

Connector & terminal

(AB9) No. 1 — (AB9) No. 2:

Is the resistance 1 M? or more?

Diagnostic Chart with Trouble Code > DTC B1805 SHORT IN PASSENGER’S AIRBAG">Go to Step 3.

Replace the airbag main harness along with body harness.

3.CHECK AIRBAG CONTROL MODULE.

1) Disconnect the test harness AG or test harness AH from the connectors (AB6, AB17, AB18).

2) Connect the connectors (AB6, AB17, AB18) and the airbag control module.

3) Connect the connectors (AB7) and (AB2).

4) Connect the connector (AB66) to the driver’s knee airbag module.

5) Connect the battery ground terminal and turn the ignition switch to ON.

6) Perform the Inspection Mode. Inspection Mode">

7) Read the DTC. (Current malfunction) Read Diagnostic Trouble Code (DTC)">

Is DTC B1805 displayed?

Replace the airbag control module. Airbag Control Module > REMOVAL">

Diagnostic Chart with Trouble Code > DTC B1805 SHORT IN PASSENGER’S AIRBAG">Go to Step 4.

4.CHECK PASSENGER’S AIRBAG MODULE.

1) Turn the ignition switch to OFF, disconnect the battery ground cable, and wait for 60 seconds or more.

2) Connect the passenger’s airbag module connector (AB9).

3) Connect the battery ground terminal and turn the ignition switch to ON.

4) Perform the Inspection Mode. Inspection Mode">

5) Read the DTC. (Current malfunction) Read Diagnostic Trouble Code (DTC)">

Is DTC B1805 displayed?

Replace the passenger’s airbag module. Passenger’s Airbag Module > REMOVAL">

Diagnostic Chart with Trouble Code > DTC B1805 SHORT IN PASSENGER’S AIRBAG">Go to Step 5.

5.CHECK FOR ANY OTHER DTC ON DISPLAY.

Is any other DTC displayed?

Check DTC using “List of Diagnostic Trouble Code (DTC)”. List of Diagnostic Trouble Code (DTC)">

Finish the diagnosis.

Dtc b1803 short in driver s airbag (to +b)

Dtc b1806 open in passenger s airbag
