Subaru Crosstrek Service Manual: Adjustment

WIPER AND WASHER SYSTEMS > Rear Wiper Arm

ADJUSTMENT

1. Operate the rear wiper once.

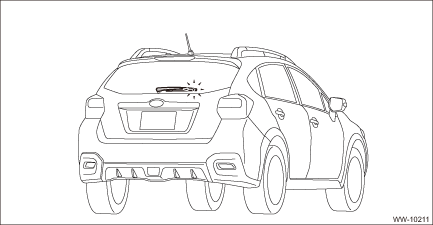

2. Align the blade assembly - rear wipe with the marking on the glass.

3. If the wiper blade is not aligned with the point mark, perform the removal of the rear wiper to align with the marking. Rear Wiper Arm > REMOVAL">

Rear wiper arm
...

Removal
WIPER AND WASHER SYSTEMS > Rear Wiper ArmREMOVAL1. Pull up the cover - rear wiper arm.2. Remove the nut, and remove the arm assembly - rear wiper. ...
