LUBRICATION(H4DO) > Oil Pressure System
WIRING DIAGRAM

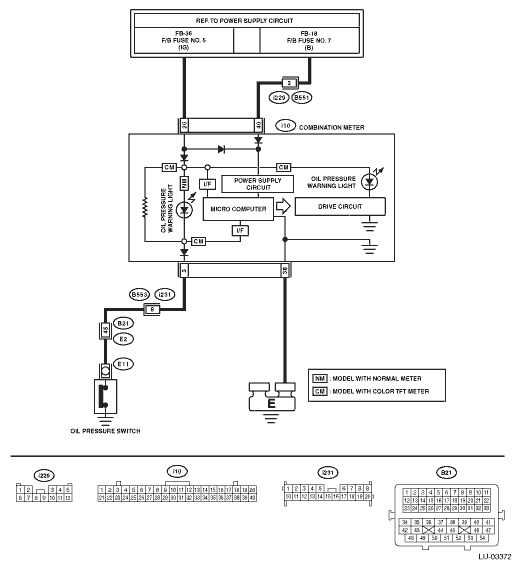

Oil pressure warning system Oil Pressure Warning Light System > WIRING DIAGRAM">
Inspection
LUBRICATION(H4DO) > Oil Pressure SystemINSPECTIONSTEPCHECKYESNO1.CHECK ENGINE OIL AMOUNT.Is the engine oil amount normal? Engine Oil > INSPECTION"> Oil Pressure System > INSPECTION&q ...
Engine lubrication system trouble in general Inspection
LUBRICATION(H4DO) > Engine Lubrication System Trouble in GeneralINSPECTIONBefore performing diagnostics, make sure that the engine oil level is correct and no oil leakage exists.TroublePossible cau ...
