FUEL INJECTION (FUEL SYSTEMS)(H4DO) > Engine Control Module (ECM)

REMOVAL

1. Disconnect the ground cable from battery.

2. Remove the glove box. Glove Box > REMOVAL">

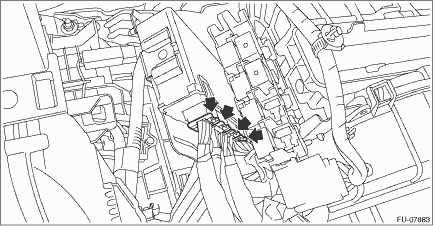

3. Disconnect the connector from ECM.

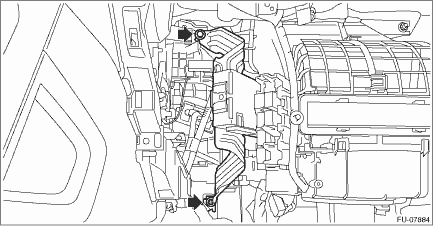

4. Remove the bolts and nuts, and remove the ECM.

Inspection

FUEL INJECTION (FUEL SYSTEMS)(H4DO) > Engine Control Module (ECM)INSPECTIONCheck that the ECM has no deformation, cracks or other damages. ...

Installation

FUEL INJECTION (FUEL SYSTEMS)(H4DO) > Engine Control Module (ECM)INSTALLATIONInstall in the reverse order of removal.CAUTION:• When the ECM of model with immobilizer has been replaced, be sur ...
