LAN SYSTEM (DIAGNOSTICS) > Electrical Component Location

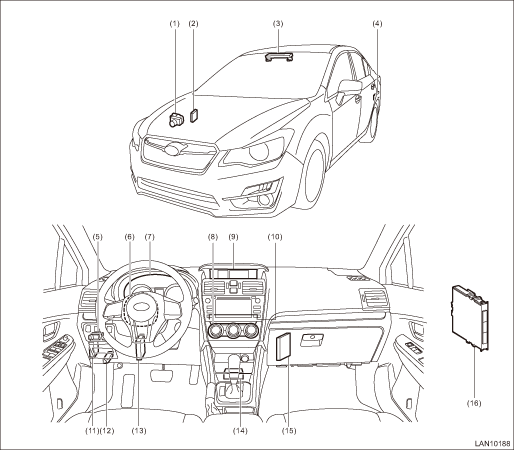

LOCATION

(1)

VDC CM

(7)

Combination meter

(12)

Data link connector

(2)

Power steering CM

(8)

A/C control panel

(13)

Transmission CM

(3)

Stereo camera

(9)

MFD

(14)

Airbag CM

(4)

Radar sensor LH

(10)

Data communication module (DCM)

(15)

Engine CM

(5)

Auto headlight beam leveler CM

(11)

Body integrated unit

(16)

Keyless access CM

(6)

Steering angle sensor

Clear memory mode Operation
