Subaru Crosstrek Owners Manual: Type C

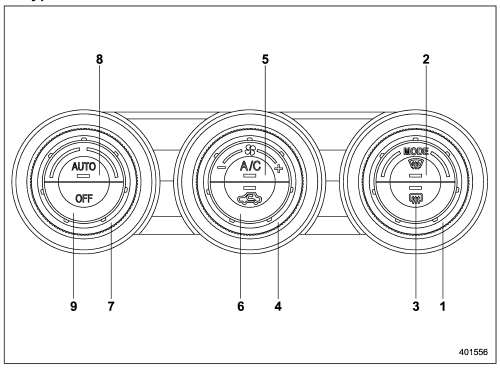

Type C

  1. Airflow mode selection dial (Refer to "Airflow mode selection"
  2. Defroster button (Refer to "Airflow mode selection"
  3. Rear window defogger button (Refer to "Defogger and deicer"
  4. Fan speed control dial (Refer to "Fan speed control"
  5. Air conditioner button (Refer to "Air conditioner control"
  6. Air inlet selection button (Refer to "Air inlet selection"
  7. Temperature control dial (Refer to "Automatic climate control operation (type B, C and D)" F4-7 and/or "Temperature control"
  8. AUTO button (Refer to "Automatic climate control operation (type B, C and D)"
  9. OFF button (Refer to "Automatic climate control operation (type B, C and D)"
Type B
Temperature control dial (Refer to "Automatic climate control operation (type B, C and D)" F4-7 and/or "Temperature control" Air conditioner button (Refer to "Air conditioner control" ...

Type D
Temperature control dial (Refer to "Automatic climate control operation (type B, C and D)" F4-7 and/or "Temperature control Defroster button (Refer to "Airflow mode selection" Rear wi ...
