Subaru Crosstrek Owners Manual: Type B

Type B

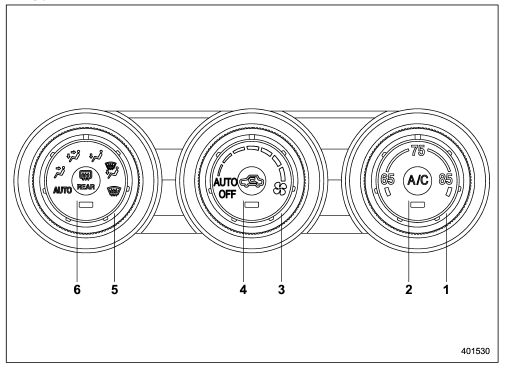

  1. Temperature control dial (Refer to "Automatic climate control operation (type B, C and D)" F4-7 and/or "Temperature control"
  2. Air conditioner button (Refer to "Air conditioner control"
  3. Fan speed control dial (Refer to "Automatic climate control operation (type B, C and D)" F4-7 and/or "Fan speed control"
  4. Air inlet selection button (Refer to "Air inlet selection"
  5. Airflow mode selection dial (Refer to "Automatic climate control operation (type B, C and D)" F4-7 and/or "Airflow mode selection"
  6. Rear window defogger button (Refer to "Defogger and deicer"

NOTE

The controllable temperature range may vary depending on the regional specifications of the vehicle.

Type A
Temperature control dial (Refer to "Temperature control" Air conditioner button (Refer to "Air conditioner control" Fan speed control dial (Refer to "Fan speed control" Air inlet se ...

Type C
Airflow mode selection dial (Refer to "Airflow mode selection" Defroster button (Refer to "Airflow mode selection" Rear window defogger button (Refer to "Defogger and deicer" Fan sp ...
