Subaru Crosstrek Owners Manual: Tool locations

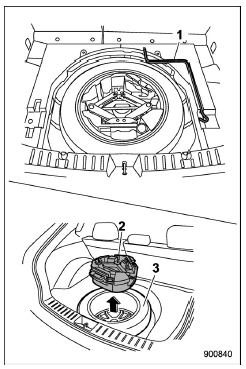

- Jack handle
- Tool bucket
- Spare tire
- Wheel nut wrench
- Screwdriver
- Jack
- Towing hook (eye bolt)
A jack handle is stored under the floor of the cargo area. A jack and a towing hook are stored in the tool bucket that is located in the recess of the spare tire wheel.
Also, a tool bag that contains a wheel nut wrench and a screwdriver is equipped with the vehicle. Open the tool bag and store the tools in the tool bucket as illustrated in order that all tools are ready for use at any time.
Maintenance tools
Your vehicle is equipped with the following
maintenance tools.
Jack
Jack handle
Screwdriver
Towing hook (eye bolt)
Wheel nut wrench
...
Using the jack
1. Park on a hard, level surface, whenever
possible, then stop the engine.
2. Apply the parking brake securely and
shift the shift lever in reverse (MT models)
or the select lever to the "P" (Pa ...
