DRIVE SHAFT SYSTEM > General Description

SPECIFICATION

1. PROPELLER SHAFT

Propeller shaft type		EDJ
Front propeller shaft joint-to-joint length: L1	CVT	675.5 mm (26.59 in)
Front propeller shaft joint-to-joint length: L1	MT	735.5 mm (28.96 in)
Rear propeller shaft joint-to-joint length: L2		723 mm (28.46 in)
Outer diameter of tube:	D1	63.5 mm (2.50 in)
Outer diameter of tube:	D2	57.5 mm (2.26 in)

2. FRONT DRIVE SHAFT ASSEMBLY

Type of drive shaft	Axle diameter φ mm (in)	Axle length mm (in)
EBJ + PTJ	22 (0.87)	356.4 (14.03)

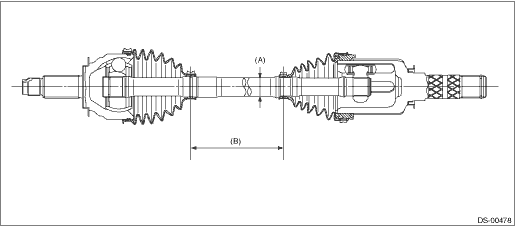

(A)

Axle diameter

(B)

Axle length

3. REAR DRIVE SHAFT ASSEMBLY

Model	Type of drive shaft	Axle diameter φ mm (in)	Axle length mm (in)
CVT model	BJ + DOJ	22 (0.87)	394.2 (15.52)
MT model	EBJ + DOJ	22 (0.87)	388.5 (15.30)

(A)

Axle diameter

(B)

Axle length

Caution

DRIVE SHAFT SYSTEM > General DescriptionCAUTION• When performing any work, always wear work clothes, a work cap and protective shoes. Additionally, wear a helmet, protective goggles, etc. if ...

Component

DRIVE SHAFT SYSTEM > General DescriptionCOMPONENT1. PROPELLER SHAFT(1)Propeller shaft(3)Rear differential (T-type)Tightening torque: N·m (kgf-m, ft-lb)(2)Rear differential (VA1-type) T1:31 ...
