Subaru Crosstrek Service Manual: Removal
AIRBAG SYSTEM > Driver’s Airbag Module
REMOVAL
CAUTION:
Before handling the airbag system components, refer to “CAUTION” of “General Description” in “AIRBAG SYSTEM”. General Description > CAUTION">
1. Position the front wheels straight ahead.
2. Turn the ignition switch to OFF.
3. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. NOTE">
4. Remove the driver’s airbag module.

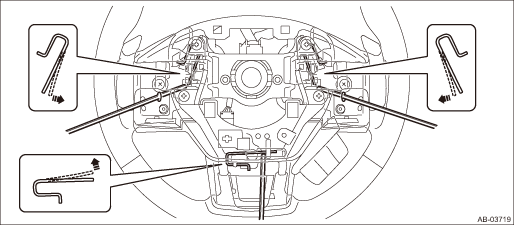

(1) Using a hexagon wrench etc. wrapped by protective tape, insert the snap pins and release the locks (three locations).
(2) Disconnect the horn harness and airbag connector, and remove the driver’s airbag module. Airbag Connector > PROCEDURE">
