EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES)(H4DO) > EGR Control Valve

REMOVAL

1. Disconnect the ground cable from battery.

2. Remove the clip (A) from the air intake boot.

3. Loosen the clamp (B) connecting the air intake boot and air cleaner case (rear).

4. Loosen the clamp (C) which connects the air intake boot and throttle body.

5. Remove the air intake boot from the throttle body, and place the air intake boot aside so that it does not interfere with the work.

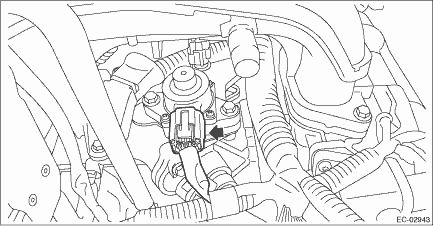

6. Disconnect the connector from the EGR control valve.

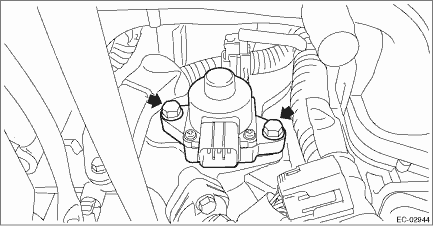

7. Remove the EGR control valve from the water pipe assembly.

Inspection

EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES)(H4DO) > EGR Control ValveINSPECTION1. Check that the EGR control valve has no deformation, cracks or other damages.2. Measure the resistance between ...

Installation

EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES)(H4DO) > EGR Control ValveINSTALLATIONInstall in the reverse order of removal.NOTE:Use new O-rings and gaskets.Tightening torque:22 N·m (2.2 k ...
