Subaru Crosstrek Service Manual: Removal

COOLING(H4DO) > Reservoir Tank

REMOVAL

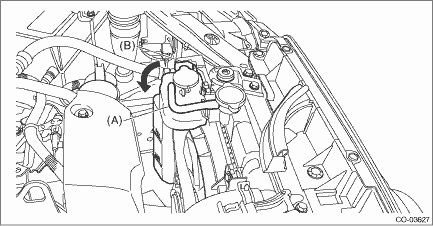

1. Disconnect the over flow hose (A) connected to the radiator filler neck from the reservoir tank.

2. Pull out the reservoir tank to the arrow direction while pushing the claw (B).

Inspection
COOLING(H4DO) > Reservoir TankINSPECTION1. Check that the reservoir tank does not have deformation, cracks or damage.2. Make sure the over flow hoses are not cracked, damaged or loose.3. Make sure ...

Installation
COOLING(H4DO) > Reservoir TankINSTALLATIONInstall in the reverse order of removal. ...
