Subaru Crosstrek Service Manual: Removal

Subaru Crosstrek Service Manual / Continuously variable transmission(tr580) / Torque converter assembly / Removal

CONTINUOUSLY VARIABLE TRANSMISSION(TR580) > Torque Converter Assembly

REMOVAL

1. Remove the transmission assembly from the vehicle. Automatic Transmission Assembly > REMOVAL">

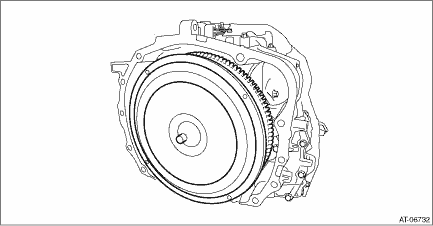

2. Pull out the torque converter assembly horizontally.

CAUTION:

Do not scratch the inside of engaging parts.

3. Remove the O-ring from the input shaft.

Inspection

CONTINUOUSLY VARIABLE TRANSMISSION(TR580) > Torque Converter AssemblyINSPECTION• Check the protrusion of torque converter center (front boss) is not deformed or damaged.• Check the ring ...

Installation

CONTINUOUSLY VARIABLE TRANSMISSION(TR580) > Torque Converter AssemblyINSTALLATION1. Install the O-ring to the input shaft.NOTE:• Use new O-rings.• Apply CVTF to the O-ring.2. While hold ...
