Subaru Crosstrek Service Manual: Removal

Subaru Crosstrek Service Manual / Continuously variable transmission(tr580) / Reduction driven gear / Removal

CONTINUOUSLY VARIABLE TRANSMISSION(TR580) > Reduction Driven Gear

REMOVAL

1. Remove the transmission assembly from the vehicle. Automatic Transmission Assembly > REMOVAL">

2. Remove the extension case. Extension Case > REMOVAL">

3. Remove the transfer clutch assembly. Transfer Clutch > REMOVAL">

4. Remove the transfer driven gear assembly. Transfer Driven Gear > REMOVAL">

5. Remove the parking pawl. Parking Pawl > REMOVAL">

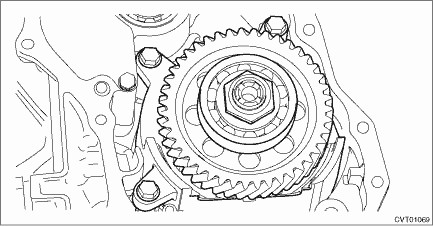

6. Remove the reduction driven gear assembly and spacer oil.
