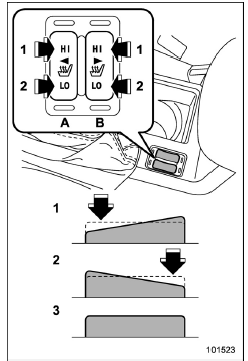

To turn on the seat heater, push the "LO" or "HI" position on the switch, as desired, depending on the temperature.
Selecting the "HI" position will cause the seat to heat up quicker.
To turn off the seat heater, lightly press the opposite side of the current position.
The indicator located on the switch illuminates when the seat heater is in operation.
