Subaru Crosstrek Service Manual: Installation

CONTINUOUSLY VARIABLE TRANSMISSION(TR580) > Transfer Clutch

INSTALLATION

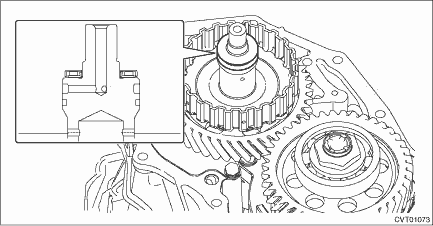

1. Install the thrust bearing.

NOTE:

Make sure to install in the right direction.

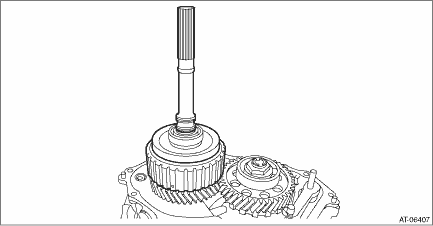

2. Install the transfer clutch assembly.

3. Select the transfer driven gear shim. Transfer Clutch > ADJUSTMENT">

4. Attach the selected transfer driven gear shim to extension case with vaseline.

5. Remove the transfer clutch assembly.

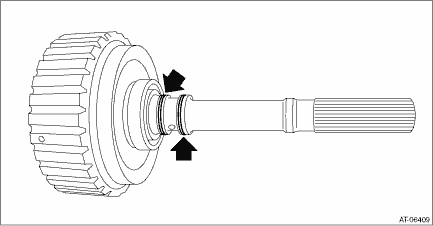

6. Install the seal ring to the transfer clutch assembly.

NOTE:

• Use a new seal ring.

• When installing the seal ring, do not expand the seal ring too much.

• Apply CVTF to the seal rings.

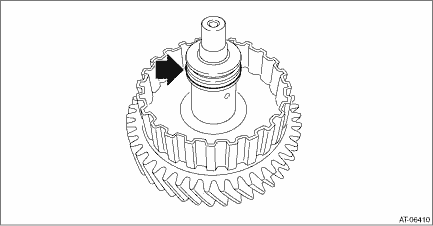

7. Install the seal ring to the transfer driven gear assembly.

NOTE:

• Use a new seal ring.

• When installing the seal ring, do not expand the seal ring too much.

• Apply CVTF to the seal rings.

8. Install the transfer clutch assembly.

9. Install the extension case. Extension Case > INSTALLATION">

10. Install the transmission assembly to the vehicle. Automatic Transmission Assembly > INSTALLATION">
