CONTINUOUSLY VARIABLE TRANSMISSION(TR580) > Air Breather Hose

INSTALLATION

1. FRONT DIFFERENTIAL SIDE

Install in the reverse order of removal.

NOTE:

Securely insert the air breather hose until the hose end contacts the catch of the pitching stopper bracket.

2. TRANSMISSION CASE SIDE

Install in the reverse order of removal.

Tightening torque:

Transmission case cover:

8 N·m (0.8 kgf-m, 5.9 ft-lb)

Air breather hose:

5 N·m (0.5 kgf-m, 3.7 ft-lb)

NOTE:

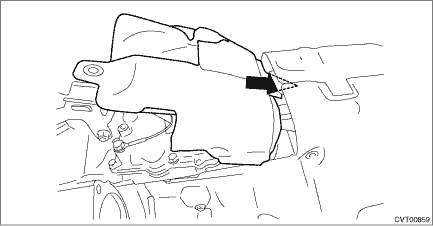

After the transmission case cover (large) is installed, insert the transmission case cover (small) between the transmission case cover (large) and the transmission to install.
