CONTINUOUSLY VARIABLE TRANSMISSION(TR580) > Secondary Speed Sensor
INSPECTION
1. Set the ST between the TCM and bulkhead harness.
| ST 18460AA040 | CHECK BOARD |
2. Set the probe of oscilloscope to the check board connector.

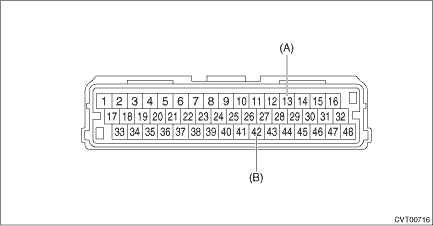

Connector & terminal
No. 13 (+) — No. 42 (−):

(A) | + probe |
(B) | − probe |
3. Start and warm up the engine.
4. Lift up the vehicle.
CAUTION:
Lift up the vehicle until the tire bottom is 0.3 m (0.98 ft) or more above the ground.
5. Shift the select lever to “D” range.

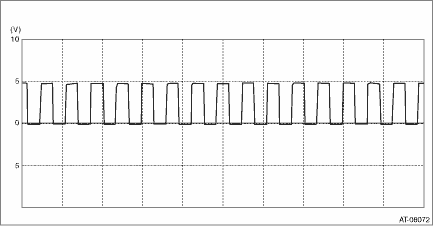

6. Check the waveform and output voltage of the secondary speed sensor with engine idling.
NOTE:
The waveform cycle changes as the speed changes.
