Subaru Crosstrek Service Manual: Inspection

BRAKE > Front Brake Pad

INSPECTION

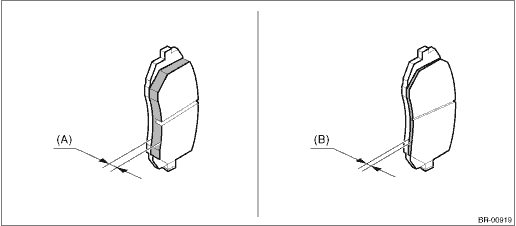

1. Check the pad thickness (A).

NOTE:

Always replace the pads of both wheels and both sides as a set.

Replace pad clips if they are twisted or worn.

Replace the pad if there is oil or grease on it.

Standard (A)

Wear limit (B)

Pad thickness

11 mm (0.43 in)

1.5 mm (0.059 in)

NOTE:

Always replace the pads of both wheels and both sides as a set.

Replace pad clips if they are twisted or worn.

Wear indicators are installed on the inner and outer disc brake pads.

If the pad is worn to the limit, the end of wear indicator contacts disc rotor, and a squeaking sound is heard as the wheel rotates. If the sound is heard, replace the pad.

Replace the pad if there is oil or grease on it.

2. If the wear limit is exceeded in the inspection, replace the brake pad.

Front brake pad
...

Removal
BRAKE > Front Brake PadREMOVAL1. Lift up the vehicle, and then remove the front wheels.2. Remove the front brake pad.(1) Remove the caliper bolt on the lower side.(2) Raise the caliper body assembl ...
