Subaru Crosstrek Owners Manual: Folding down the rear seatback

WARNING

Folding down the rear seatback

Lock release knob

  1. Unlocked
  2. Locked
  3. Unlocking marker in red

WARNING

When you return the seatback to its original position, check that the unlocking marker on the lock release knob is not visible. Also, shake the seatback slightly to confirm that it is securely fixed in place.

If the seatback is not securely fixed in place, the seatback may suddenly fold down in the event of sudden braking, or objects may move out from the cargo area, which could cause serious injury or death.

Lock release knob

WARNING

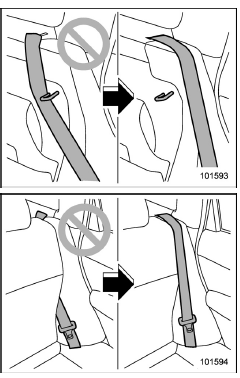

When the seatback is returned to its original position, observe the following precautions. Failure to do so may lead to serious injury or an accident because the operation efficiency of the seatbelt is inhibited.

Lock release knob

Unlock the seatback by pulling the lock release knob and then fold the seatback down.

To return the seatback to its original position, raise the seatback until it locks into place and make sure that the unlocking marker on the lock release knob is no longer visible.

Rear center seating position
CAUTION The head restraint is not intended to be used at the retracted position. Before sitting on the seat, raise the head restraint to the extended position. Incorrect (retracted posit ...
