Subaru Crosstrek Service Manual: Dtc p0724 brake switch "b" circuit high

CONTINUOUSLY VARIABLE TRANSMISSION (DIAGNOSTICS) > Diagnostic Procedure with Diagnostic Trouble Code (DTC)

DTC P0724 BRAKE SWITCH "B" CIRCUIT HIGH

DTC detecting condition:

Immediately at fault recognition

Trouble symptom:

Gear is not shifted down when climbing a hill or driving down a hill.

CAUTION:

Use the check board when measuring the TCM terminal voltage and resistance.

Wiring diagram:

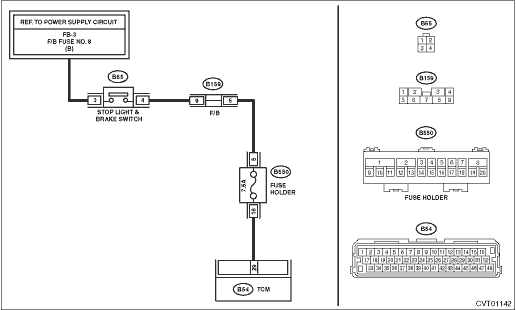

Without EyeSight

Stop light system Stop Light System > WIRING DIAGRAM">

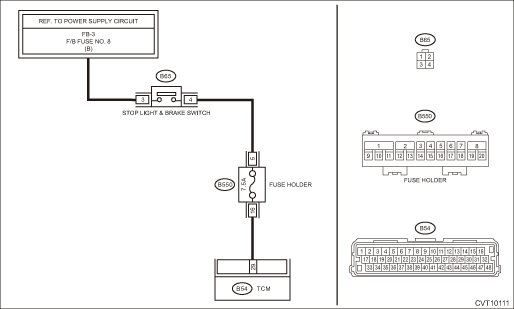

With EyeSight

Stop light system Stop Light System > WIRING DIAGRAM">

STEPCHECKYESNO

1.CHECK STOP LIGHT SWITCH.

1) Turn the ignition switch to OFF.

2) Disconnect the stop light switch connector.

3) Measure the resistance between stop light switch.

Terminals

No. 3 — No. 4:

Is the resistance 1 M? or more?

Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P0724 BRAKE SWITCH "B" CIRCUIT HIGH">Go to Step 2.

Replace the stop light switch. Stop Light Switch">

2.CHECK HARNESS.

1) Disconnect the TCM connector.

2) Turn the ignition switch to ON.

3) Measure the voltage between TCM connector and chassis ground.

Connector & terminal

(B54) No. 29 (+) — Chassis ground (−):

Is the voltage 10 V or more?

Repair the short circuit of harness.

Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P0724 BRAKE SWITCH "B" CIRCUIT HIGH">Go to Step 3.

3.CHECK INPUT SIGNAL FOR TCM.

1) Connect all connectors.

2) Turn the ignition switch to ON.

3) Read the data of «Stop Light Switch» using Subaru Select Monitor.

Is “OFF” displayed?

Current condition is normal. Check for poor contact in connectors or harnesses, and repair the defective part.

Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P0724 BRAKE SWITCH "B" CIRCUIT HIGH">Go to Step 4.

4.CHECK FOR POOR CONTACT.

Is there poor contact in the stop light switch input signal circuit?

Repair the poor contact.

Replace the TCM. Transmission Control Module (TCM)">

1. OUTLINE OF DIAGNOSIS

Detect the brake signal stuck to ON.

Judge as NG if a predetermined number of acceleration occurs while the cruise control is set to OFF and the brake is ON.

2. EXECUTION CONDITION

Secondary parameters

Execution condition

Cruise control

OFF

3. DIAGNOSTIC METHOD

If the duration of time while the following conditions are met is longer than the time indicated, judge as NG.

Judgment Value

Malfunction Criteria

Threshold Value

Number of times that vehicle speed changes from 1 km/h to 30 km/h while the brake SW is ON

> 10 count

Malfunction Indicator Light Illumination: Does not illuminate.
