Subaru Crosstrek Service Manual: Disassembly
COOLING(H4DO) > Radiator Main Fan and Fan Motor
DISASSEMBLY

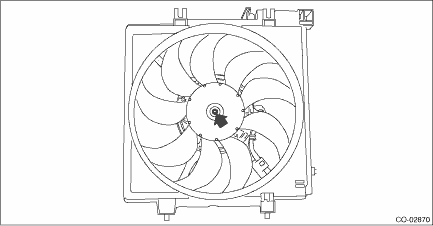

1. Remove the clip which holds the main fan motor connector onto the radiator main fan shroud.

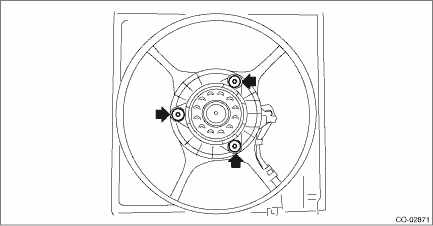

2. Disconnect the radiator main fan from the main fan motor.
3. Disconnect the main fan motor from the radiator main fan shroud.
Removal
COOLING(H4DO) > Radiator Main Fan and Fan MotorREMOVAL1. Disconnect the ground cable from battery. NOTE">2. Remove the reservoir tank. Reservoir Tank > REMOVAL">3. Disconnect t ...
Inspection
COOLING(H4DO) > Radiator Main Fan and Fan MotorINSPECTIONCheck that the radiator main fan, radiator main fan shroud and main fan motor assembly do not have deformation, cracks or damage. ...
