Subaru Crosstrek Service Manual: Disassembly

Subaru Crosstrek Service Manual / Continuously variable transmission(tr580) / Reduction driven gear / Disassembly

CONTINUOUSLY VARIABLE TRANSMISSION(TR580) > Reduction Driven Gear

DISASSEMBLY

1. Flatten the tab of the lock nut.

2. Using the ST, counter the rotation of the reduction driven gear assembly, and remove the lock nut.

ST1 18355AA000

PULLEY WRENCH

ST2 18334AA000

PIN SET

ST3 499987003

SOCKET WRENCH (35)

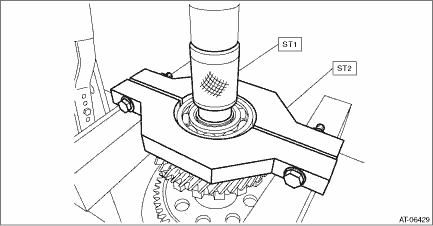

3. Remove the ball bearing using ST.

ST1 499757002

INSTALLER

ST2 498077300

REMOVER

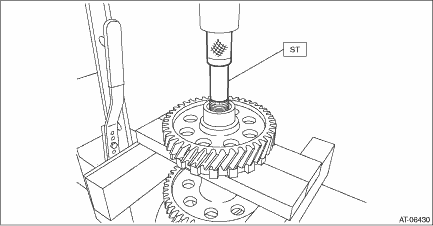

4. Using the ST, remove the parking gear and transfer drive gear.

ST 899864100

REMOVER

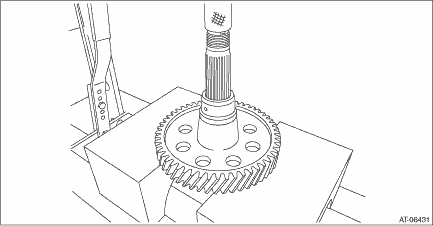

5. Remove the collar.

NOTE:

When collar has been removed, do not reuse the reduction driven gear and/or shaft, and replace it with reduction driven gear COMPL.
