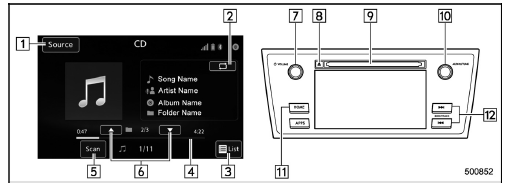

Control screen and audio panel

  1. Select to display the audio source selection screen.
  2. Select to display the play mode currently selected. Refer to "Select play mode"
  3. Audio CD: Select to display a track list.

    MP3/WMA/AAC disc: Select to display a folder list.

  4. Shows progress.
  5. The tracks in the disc are played back for 10 seconds each from the beginning of the track.
  6. MP3/WMA/AAC disc: Select to choose a folder.
  7. Turn to adjust volume.

    Press to turn the audio system on/ off.

  8. Press to eject a disc.
  9. Disc slot
  10. Turn to select a track/file.

    Press to select an audio source.

    Refer to "Selecting an audio source"

  11. Press to display the sound setting screen. Refer to "Unit settings
  12. Press to select a track/file.

    Press and hold to fast forward/rewind.

NOTE

CD
...

Loading a disc
CAUTION Never try to disassemble the audio kit or lubricate any part of the CD player. Do not insert anything other than a disc into the slot. Insert a disc into the disc slot. After insertion, ...
