Subaru Crosstrek Owners Manual: Components

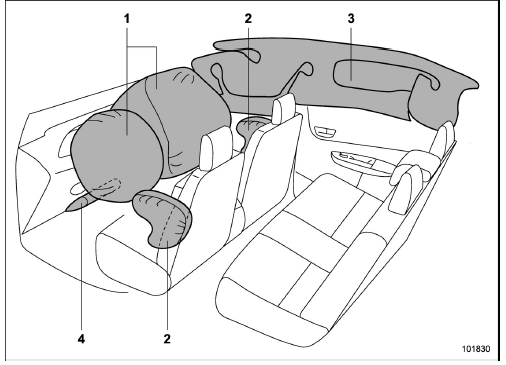

- SRS frontal airbag
- SRS side airbag
- SRS curtain airbag
- SRS knee airbag
The SRS airbags are stowed in the following locations.
Driver's SRS frontal airbag: in the center portion of the steering wheel A "SRS AIRBAG" mark is located at the pad of the airbag.
Front passenger's SRS frontal airbag: near the top of the dashboard under the "SRS AIRBAG" mark SRS side airbag: in the door side of each front seat seatback which bears an "SRS AIRBAG" label SRS curtain airbag: in the roof side (between the front pillar and a point behind the rear quarter glass) "SRS AIRBAG" marks are located at the top of each center pillar and each rear pillar.
SRS knee airbag: under the steering column A "SRS AIRBAG" mark is located at the door of the airbag.

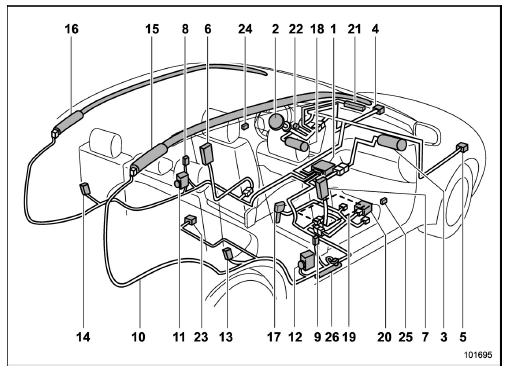

- Airbag control module (including impact sensor and rollover sensor)
- Frontal airbag module (driver's side)
- Frontal airbag module (front passenger's side)
- Front sub sensor (left-hand side)
- Front sub sensor (right-hand side)
- Side airbag module (driver's side)
- Side airbag module (front passenger's side)
- Side airbag sensor (center pillar left-hand side)
- Side airbag sensor (center pillar righthand side)
- Airbag wiring
- Seatbelt pretensioner (driver's side)
- Seatbelt pretensioner (front passenger's side)
- Curtain airbag sensor (rear wheel house right-hand side)
- Curtain airbag sensor (rear wheel house left-hand side)
- Curtain airbag module (right-hand side)
- Curtain airbag module (left-hand side)
- Seatbelt buckle switch (front passenger's side)
- Knee airbag module (driver's side)
- Front passenger's occupant detection system sensor
- Front passenger's occupant detection control module
- Front passenger's frontal airbag ON and OFF indicator
- SRS airbag system warning light
- Satellite safing sensor (under the rear center seat)
- Front door impact sensor (left-hand side)
- Front door impact sensor (right-hand side)
- Lap belt pretensioner (front passenger's side)
General precautions regarding SRS airbag system
WARNING
To obtain maximum protection in
the event of an accident, the
driver and all passengers must
always wear seatbelts when in
the vehicle. The SRS airbag is
designed only to be a su ...
SUBARU advanced frontal airbag system
Your vehicle is equipped with a SUBARU
advanced frontal airbag system that complies
with the new advanced frontal airbag
requirements in the amended Federal
Motor Vehicle Safety Standard (FMVSS)
...
