Subaru Crosstrek Service Manual: Component

COMMUNICATION SYSTEM > General Description

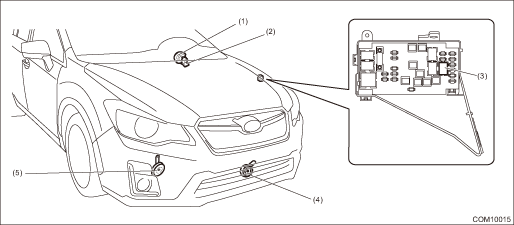

COMPONENT

(1)

Horn switch (driver’s airbag module ASSY)

(3)

Horn relay

(5)

Horn ASSY - Hi

(2)

Roll connector

(4)

Horn ASSY - Lo

Preparation tool
COMMUNICATION SYSTEM > General DescriptionPREPARATION TOOL1. GENERAL TOOLTOOL NAMEREMARKSCircuit testerUsed for measuring resistance, voltage and current. ...

Horn
...
