Subaru Crosstrek Service Manual: Component
CLUTCH SYSTEM > General Description
COMPONENT

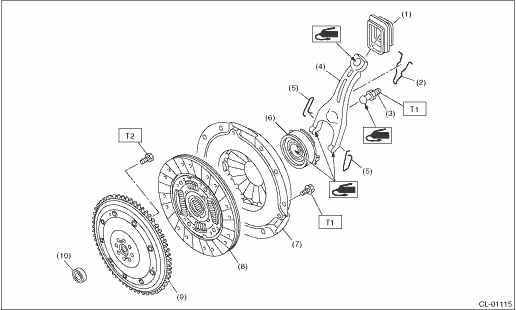

1. CLUTCH ASSEMBLY
(1) | Dust cover | (6) | Release bearing | Tightening torque: N·m (kgf-m, ft-lb) | |
(2) | Lever spring | (7) | Clutch cover | T1: | 16 (1.6, 11.8) |
(3) | Pivot | (8) | Clutch disc | T2: | Flywheel > INSTALLATION"> |
(4) | Release lever | (9) | Flexible flywheel | ||
(5) | Clip | (10) | Pilot bearing | ||

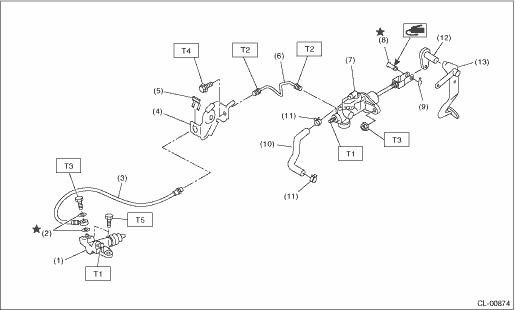

2. CLUTCH PIPE AND HOSE
(1) | Operating cylinder | (8) | Clevis pin | Tightening torque: N·m (kgf-m, ft-lb) | |
(2) | Gasket | (9) | Snap pin | T1: | 7.8 (0.8, 5.8) |
(3) | Clutch hose | (10) | Tank hose | T2: | 15 (1.5, 11.1) |
(4) | Clutch hose bracket | (11) | Clamp | T3: | 18 (1.8, 13.3) |
(5) | Clamp | (12) | Lever | T4: | 25 (2.5, 18.4) |
(6) | Clutch pipe | (13) | Pedal | T5: | 37 (3.8, 27.3) |
(7) | Master cylinder ASSY | ||||

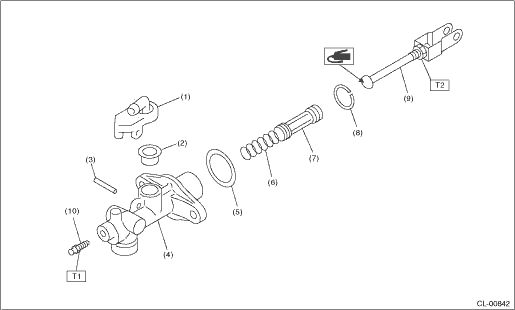

3. MASTER CYLINDER
(1) | Nipple | (6) | Return spring | Tightening torque: N·m (kgf-m, ft-lb) | |
(2) | Oil seal | (7) | Piston | T1: | 7.8 (0.8, 5.8) |
(3) | Straight pin | (8) | Piston stop ring | T2: | 10 (1.0, 7.4) |
(4) | Master cylinder | (9) | Push rod ASSY | ||
(5) | Seat | (10) | Bleeder screw | ||

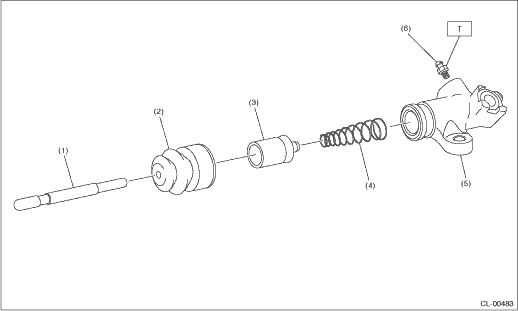

4. OPERATING CYLINDER
(1) | Push rod | (4) | Piston spring | Tightening torque: N·m (kgf-m, ft-lb) | |
(2) | Boot | (5) | Operating cylinder | T: | 7.8 (0.8, 5.8) |
(3) | Piston | (6) | Bleeder screw | ||
5. CLUTCH PEDAL
(1) | Stopper | (11) | Clutch clevis pin | (21) | Lever |
(2) | Pedal bushing | (12) | Assist rod A | (22) | Clutch start switch |
(3) | Spring pin | (13) | Clip | (23) | Clutch pedal pad (sport type) |
(4) | Snap pin | (14) | Assist spring | (24) | Brake pedal pad (sport type) |
(5) | Brake pedal pad (normal type) | (15) | Assist bushing | ||
(6) | Brake pedal | (16) | Assist rod B | Tightening torque: N·m (kgf-m, ft-lb) | |
(7) | Clevis pin | (17) | Clutch switch | T1: | 8 (0.8, 5.9) |
(8) | Clutch pedal pad (normal type) | (18) | Stop light switch | T2: | 18 (1.8, 13.3) |
(9) | Clutch pedal | (19) | Pedal bracket | ||
(10) | Bushing C | (20) | Clutch master cylinder bracket | ||
Specification
CLUTCH SYSTEM > General DescriptionSPECIFICATIONModel2.0 LTransmission type5MTClutch coverTypePush typeDiaphragm set loadN (kgf, lbf)5,688 (580, 1,279)Clutch discFacing materialWoven (non-asbestos) ...
Preparation tool
CLUTCH SYSTEM > General DescriptionPREPARATION TOOL1. SPECIAL TOOLILLUSTRATIONTOOL NUMBERDESCRIPTIONREMARKS498497100CRANKSHAFT STOPPERUsed for stopping rotation of the flywheel.499747100CLUTCH DISC ...
