Subaru Crosstrek Owners Manual: Bulb chart

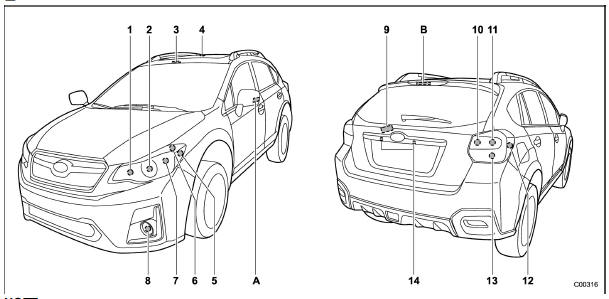

Bulb chart

NOTE

Lights A and B are the LED (Light Emitting Diode) type. Consult your SUBARU dealer for replacement.

  Wattage Bulb No.
1) High beam headlight 12V-60W HB3
2) Low beam headlight
  • Models with HID light
  • Models with halogen light
  • 12V-35W
  • 12V-55W
  • D2R
  • H11
3) Map light 12V-8W -
4) Dome light 12V-8W -
5) Front side marker light 12V-5W W5W
6) Parking light 12V-5W W5W
7) Front turn signal light 12V-21W WY21W
8) Front fog light
  • Models without steering responsive fog lights system
  • Models with steering responsive fog lights system
  • 12V-24W
  • 12V-55W
  • PSX24W
  • H11
9) Cargo area light 12V-5W -
10) Backup light 12V-16W W16W
11) Rear turn signal light 12V-21W WY21W
12) Rear side marker light 12V-5W W5W
13) Stop light/Tail light 12V-21/5W W21/5W
14) License plate light 12V-5W W5W
A) Side turn signal light (if equipped) - -
B) High-mounted stop light - -
Safety precautions
WARNING Bulbs may become very hot while illuminated. Before replacing bulbs, turn off the lights and wait until the bulbs cool down. Otherwise, there is a risk of sustaining a burn injury. For ...

Vehicle identification
1) Vehicle identification number (under the floor carpet of the right-hand front seat) 2) Emission control label 3) Tire inflation pressure label 4) Certification label 5) Vehicle identificat ...
