Subaru Crosstrek Service Manual: Assembly
DRIVE SHAFT SYSTEM > Rear Hub Unit Bearing
ASSEMBLY

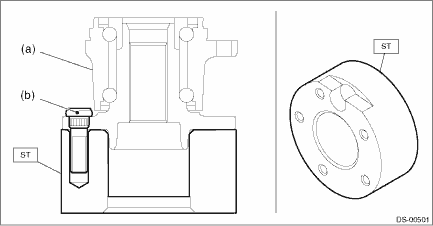

1. Install the rear hub unit bearing to the ST securely.
Preparation tool:
ST: HUB STAND (927080000)
(1) | Rear hub unit bearing |
2. Using a press, press new hub bolts (b) until their seating surfaces contact the rear hub unit bearing (a).
NOTE:
Use the 12 mm (0.47 in) dia. holes in the HUB STAND to prevent bolts from tilting.
